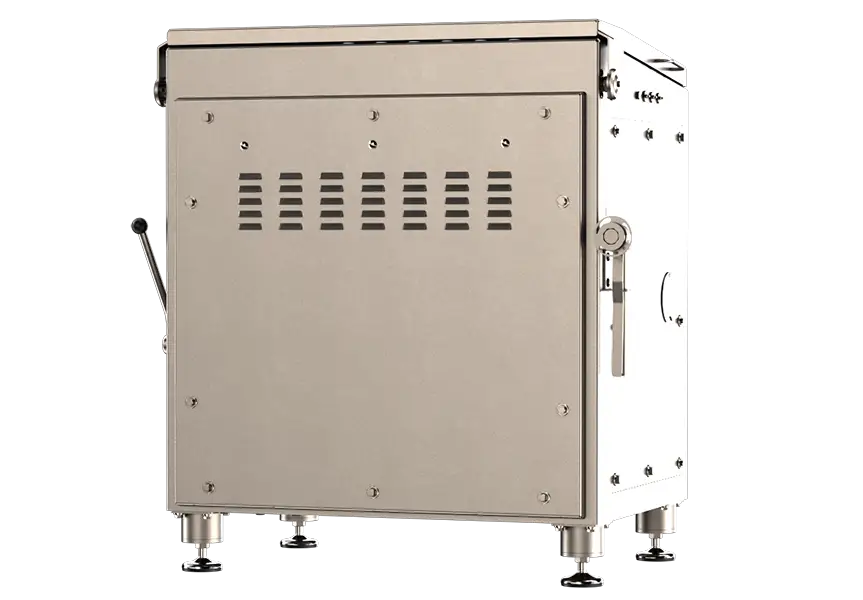

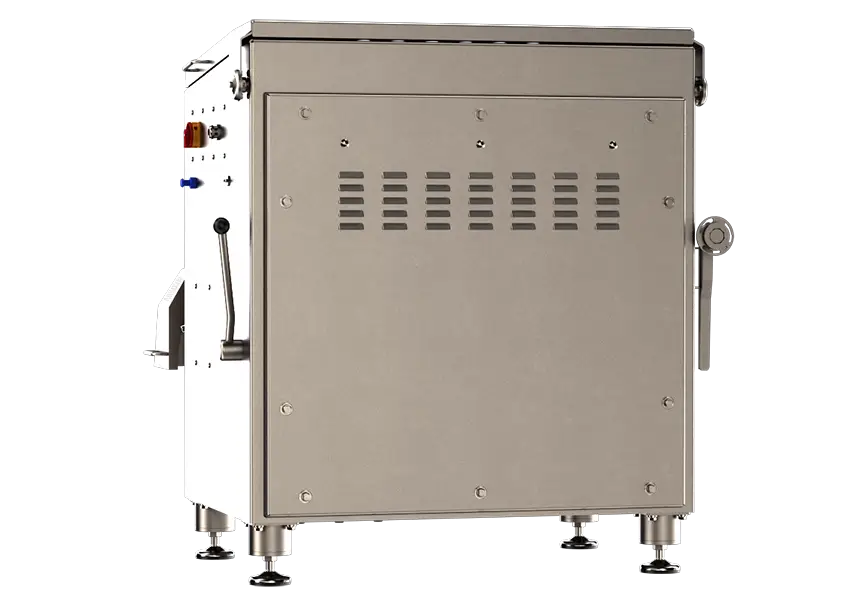

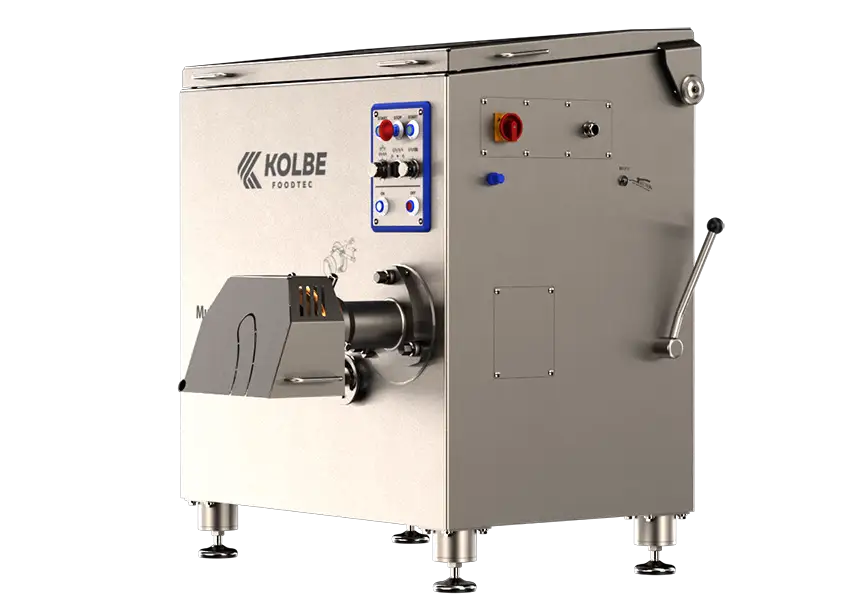

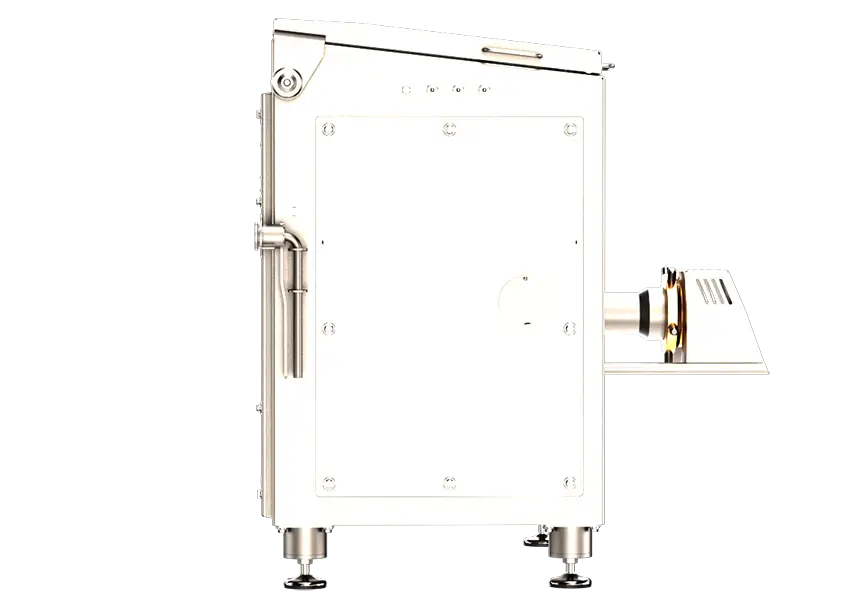

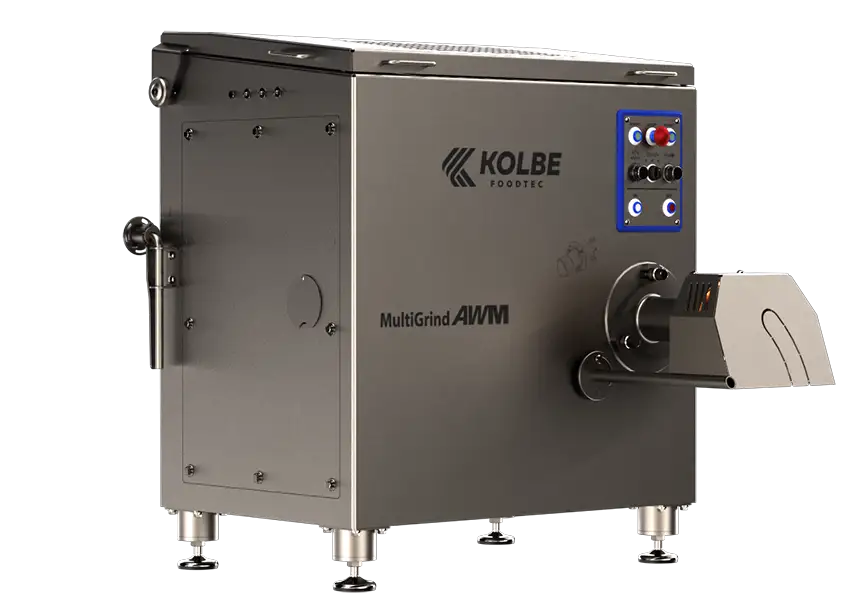

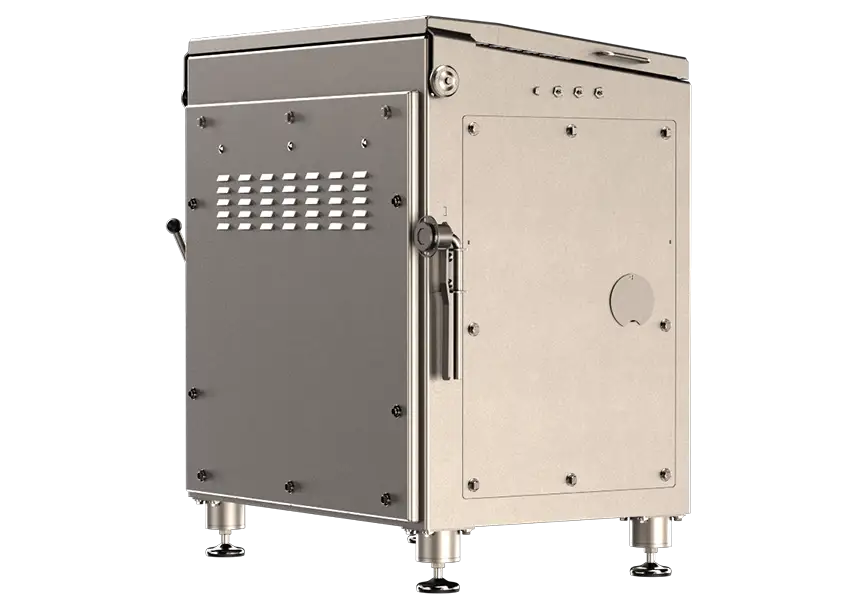

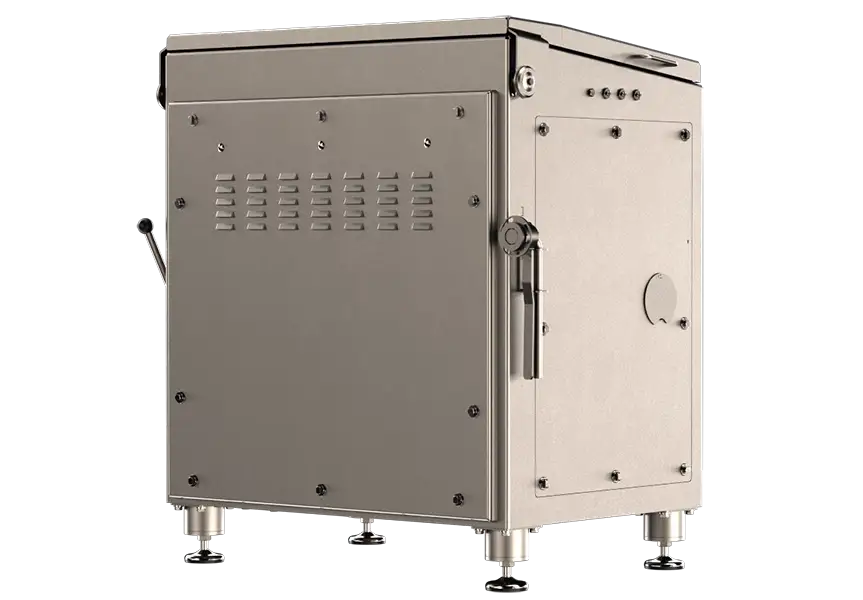

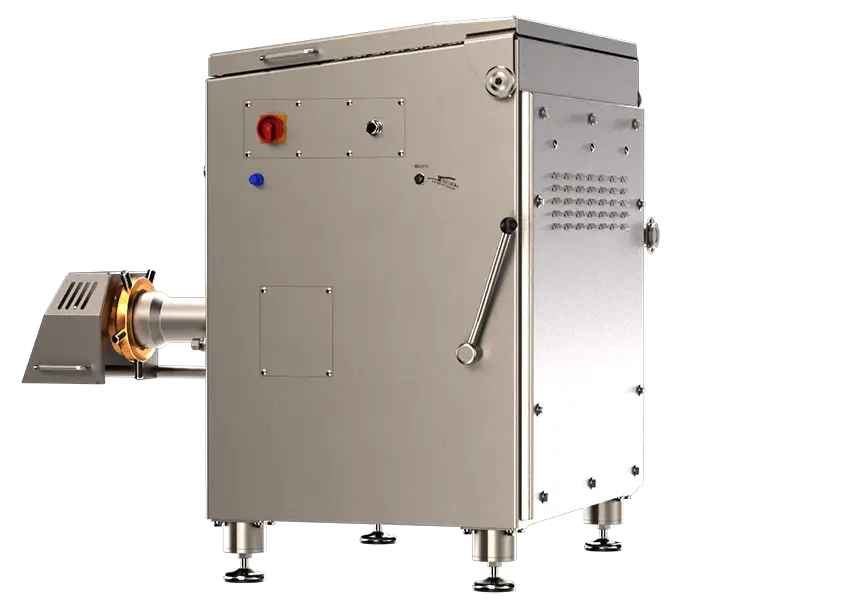

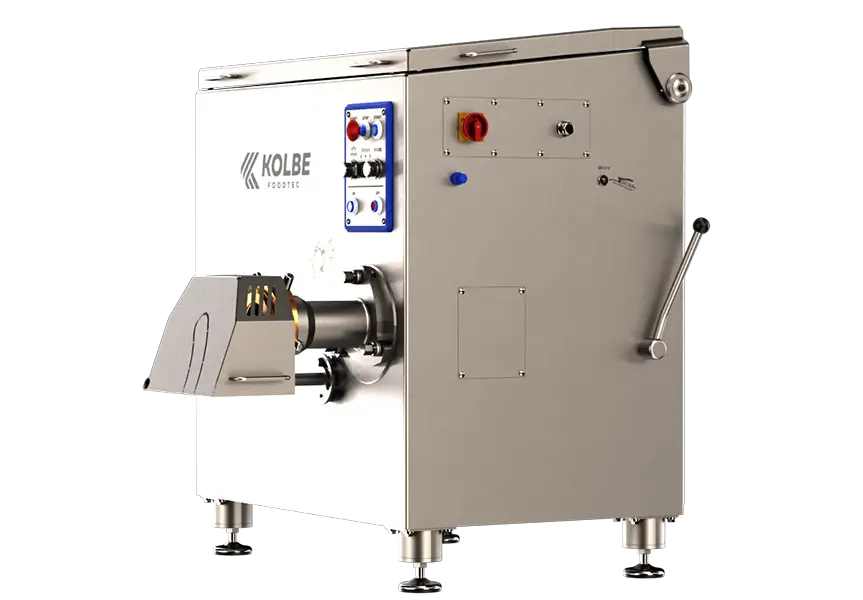

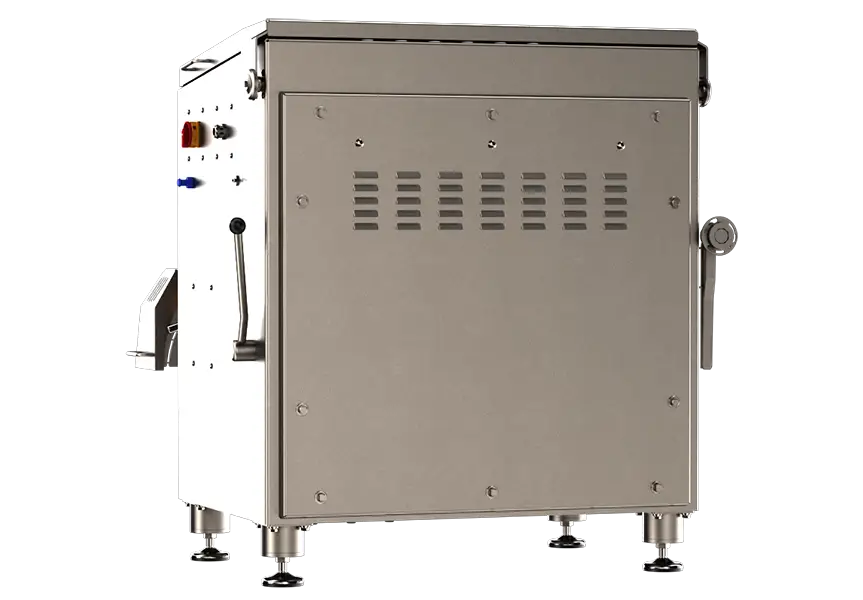

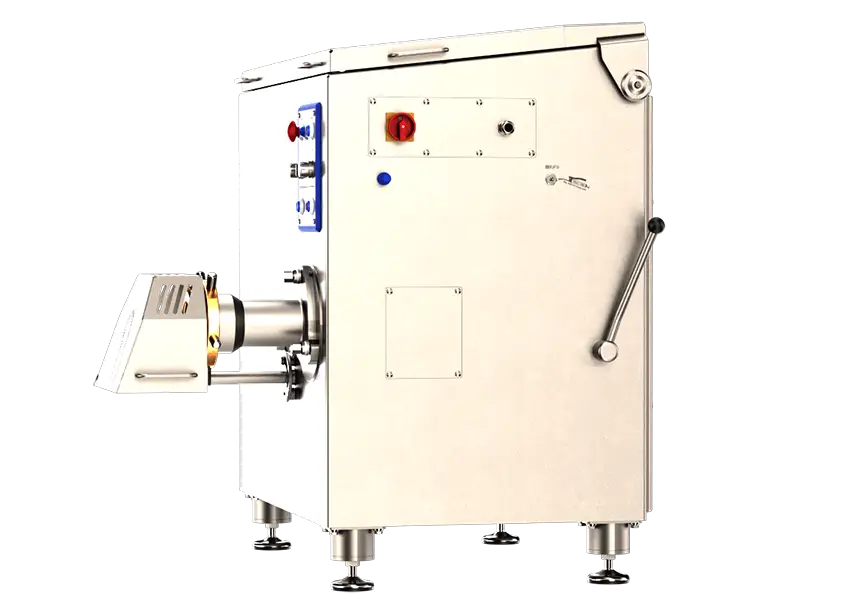

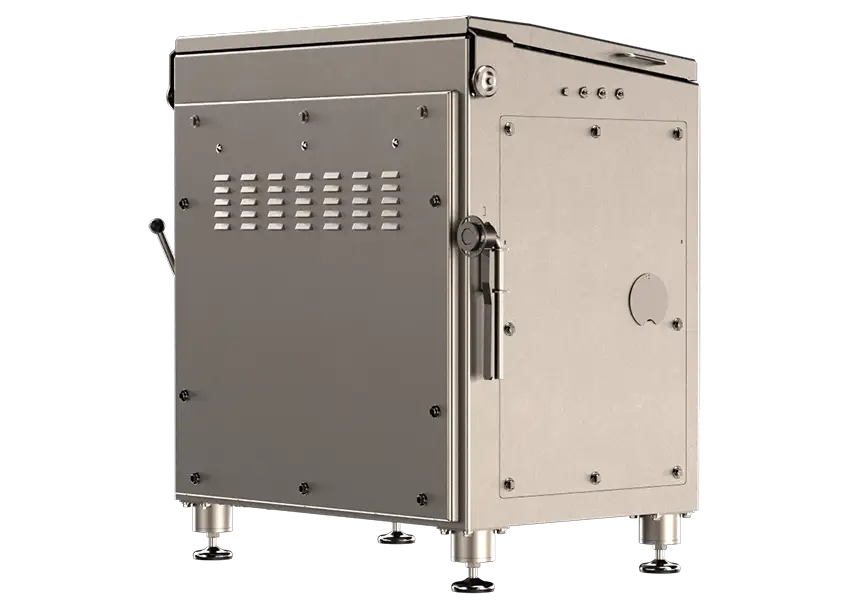

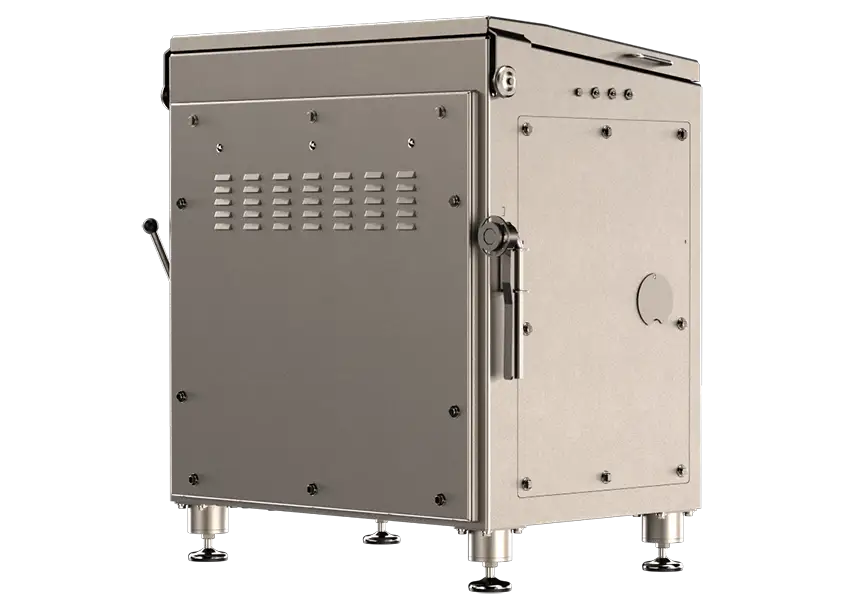

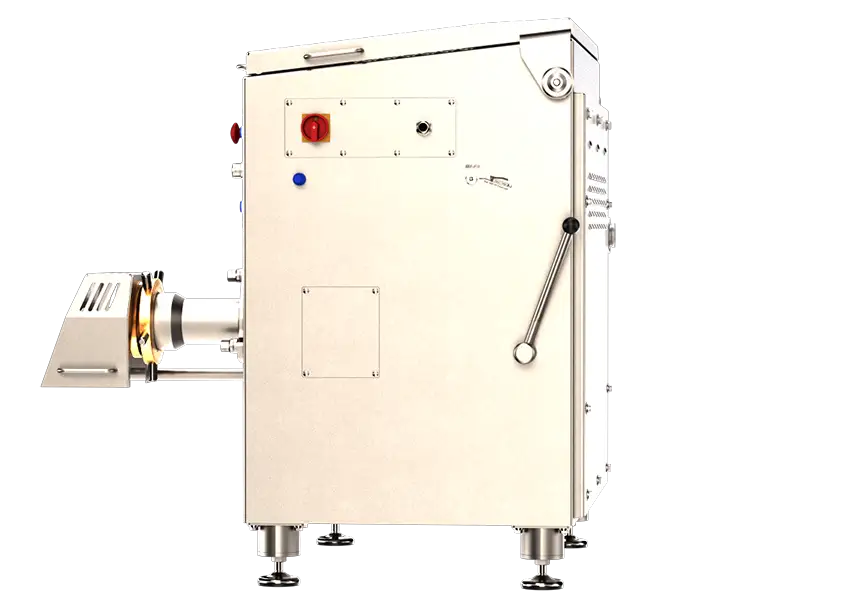

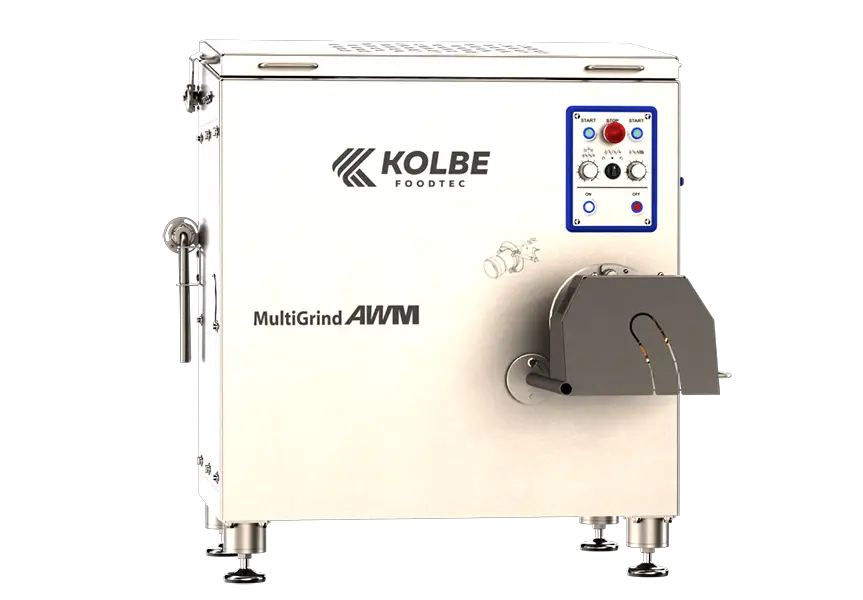

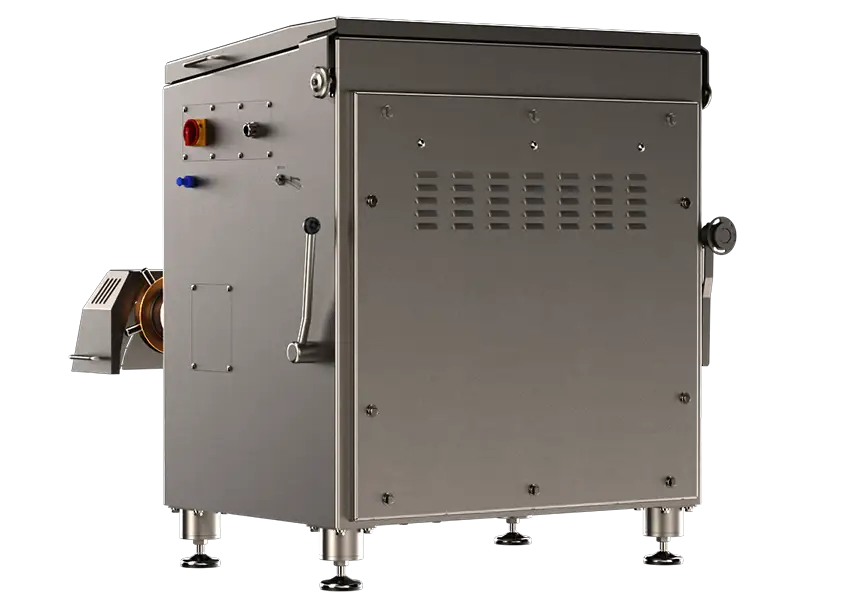

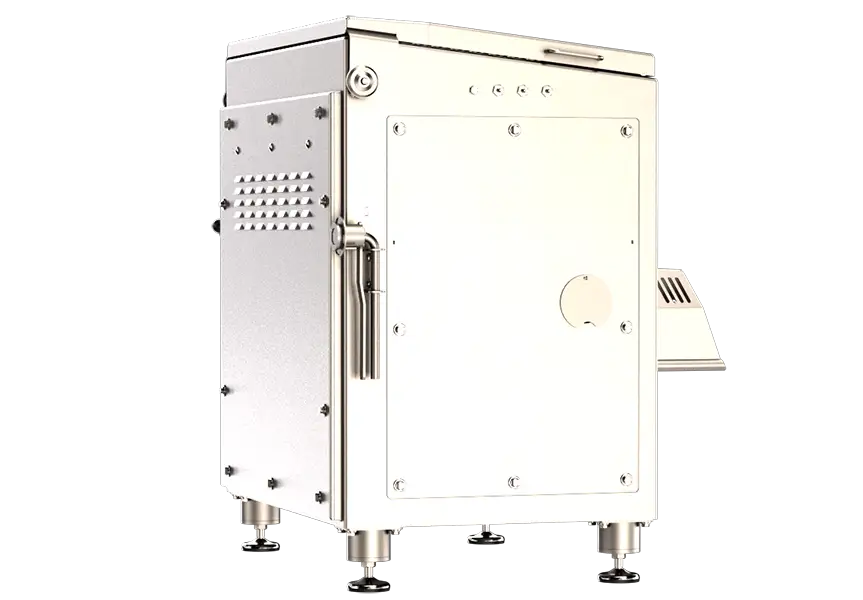

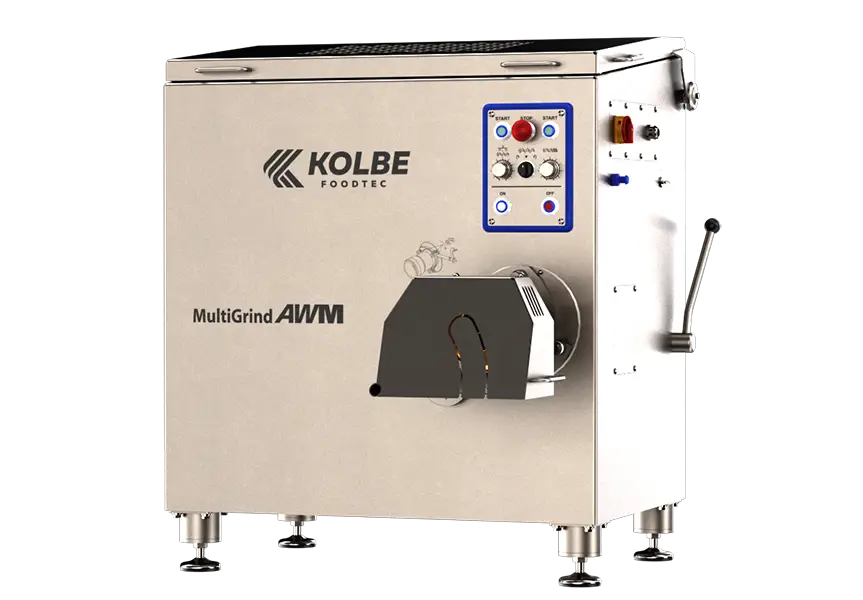

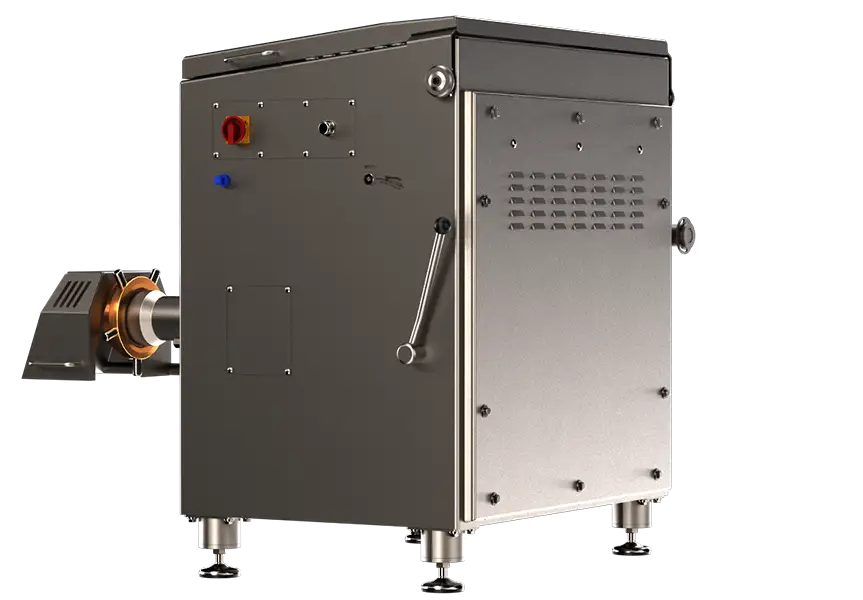

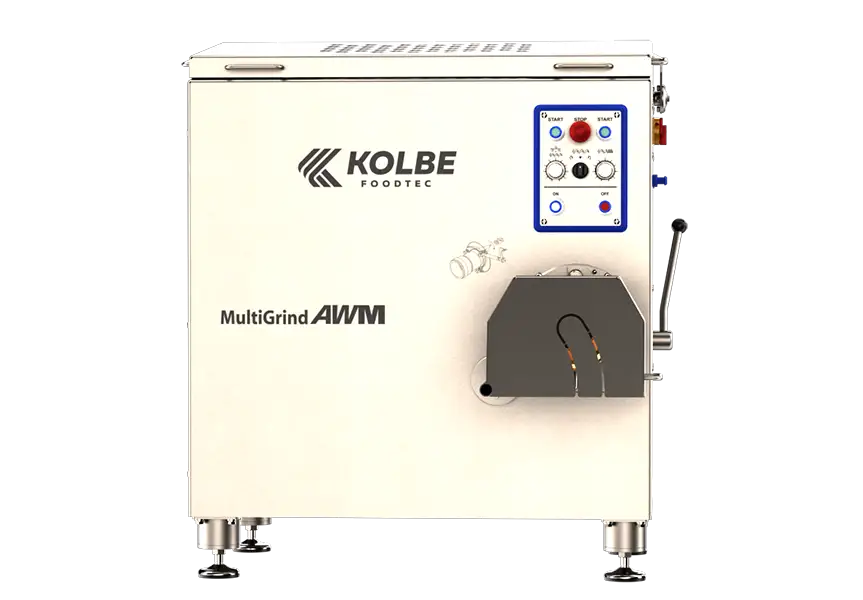

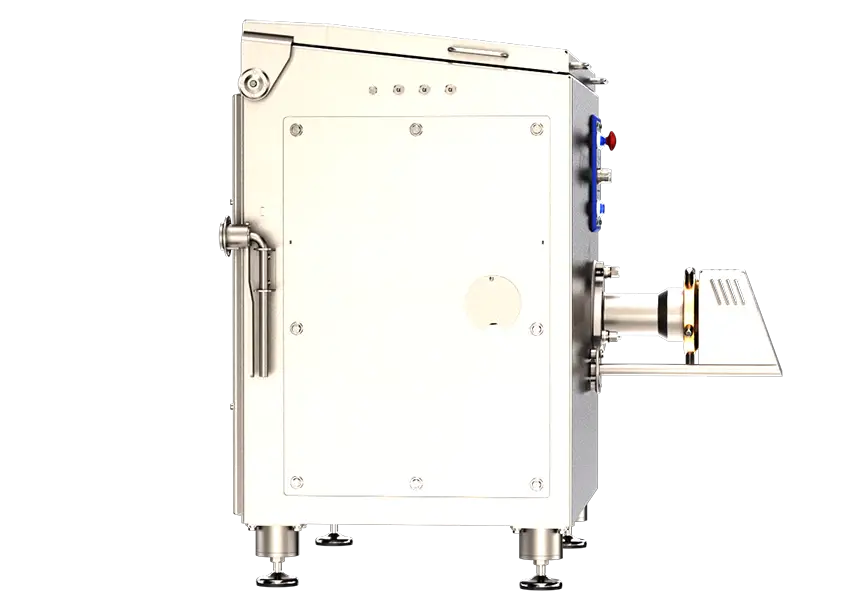

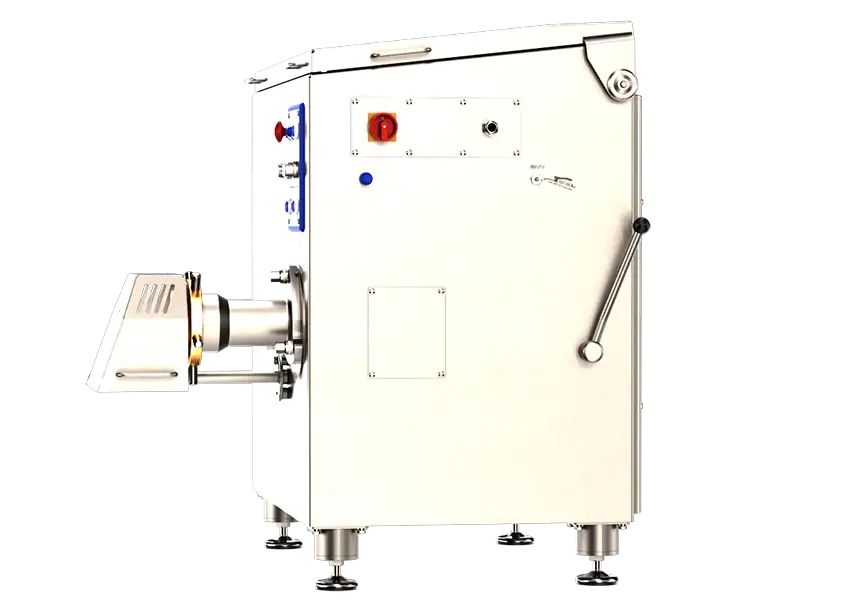

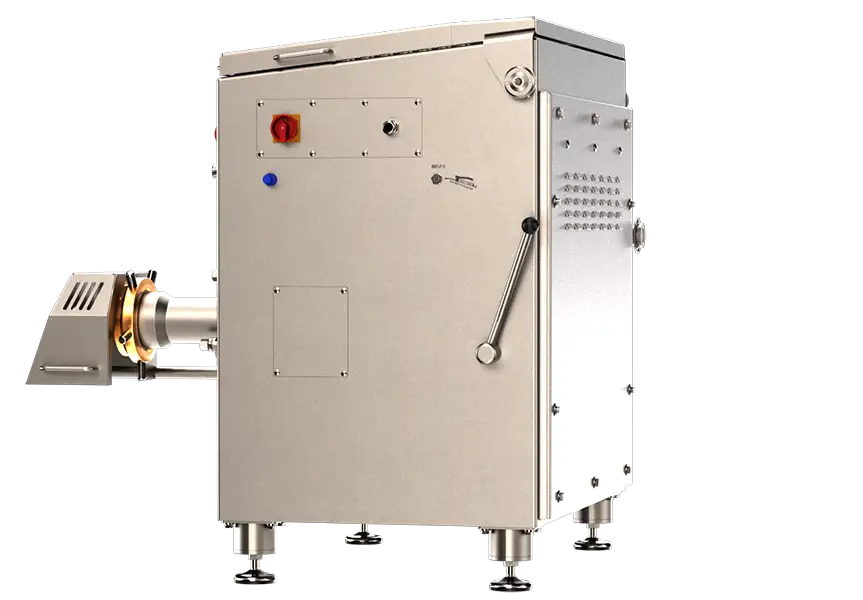

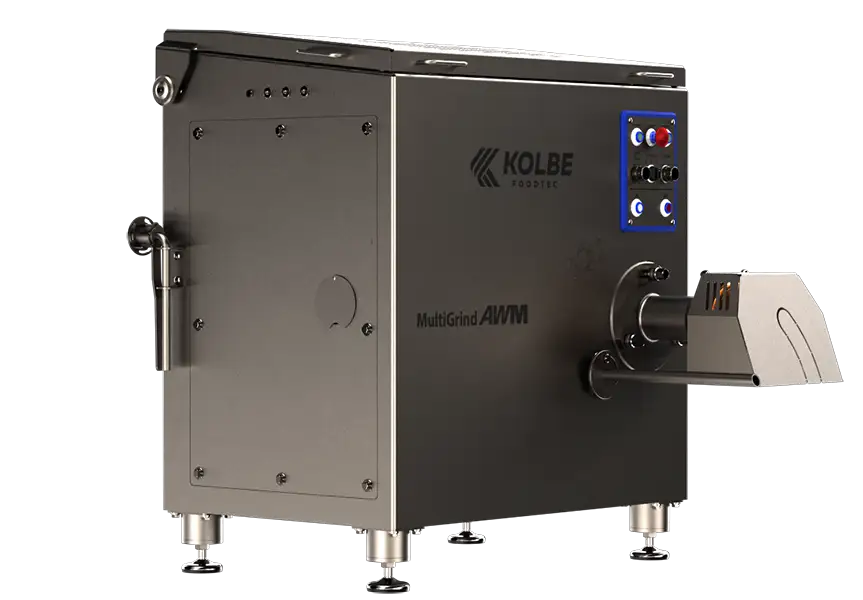

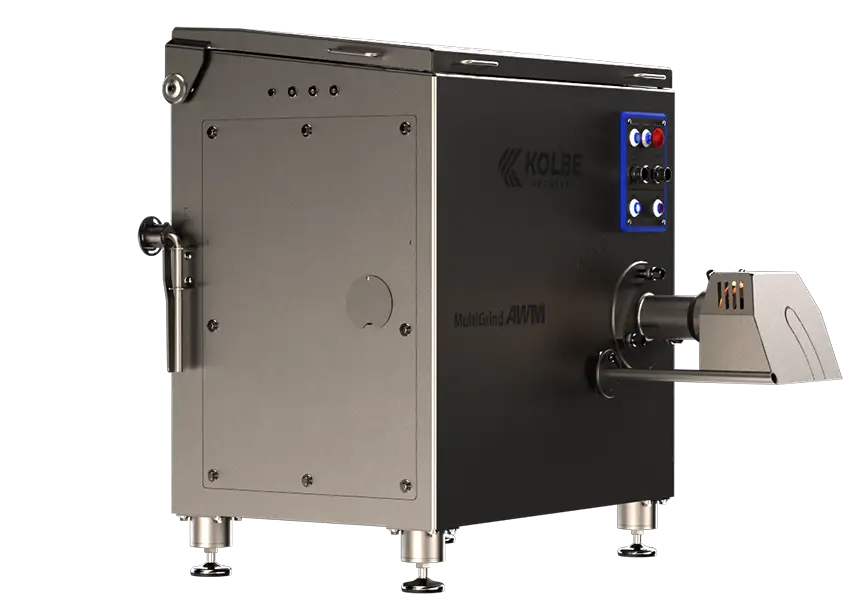

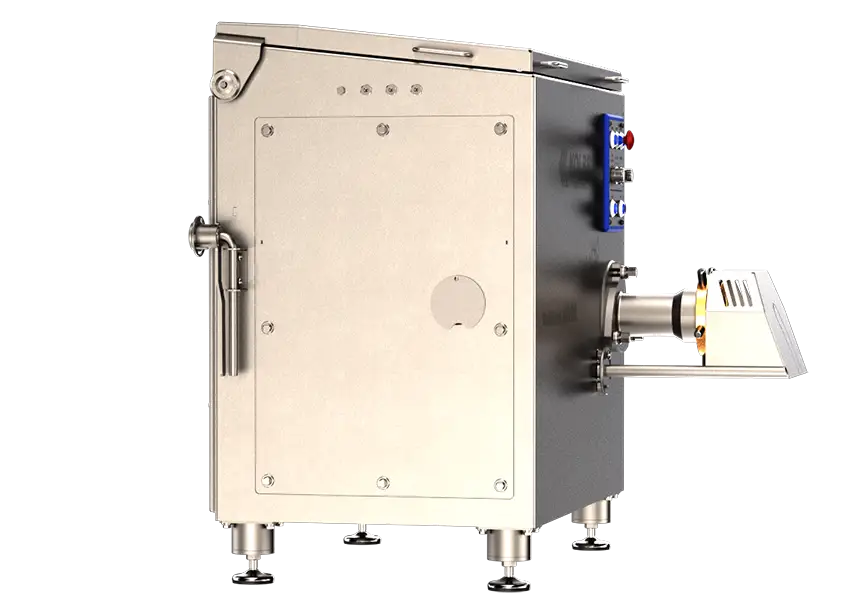

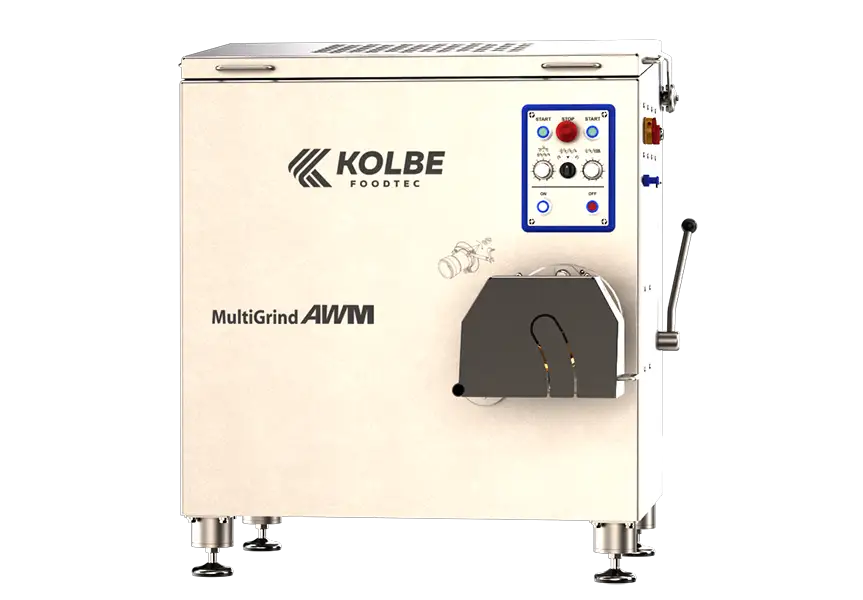

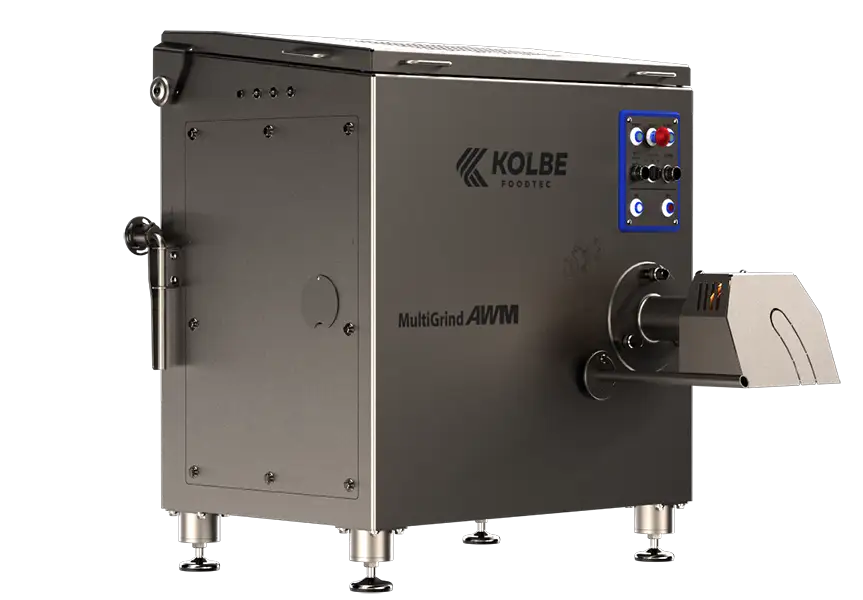

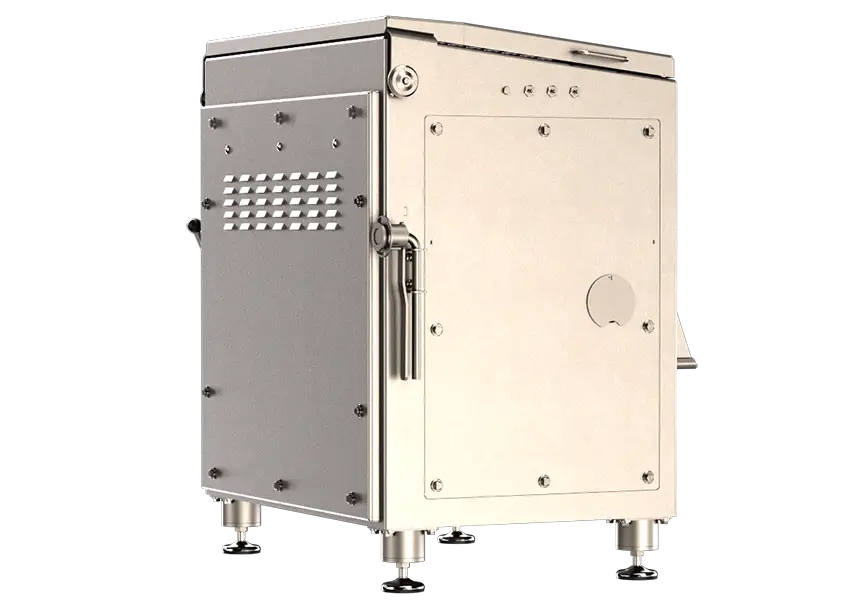

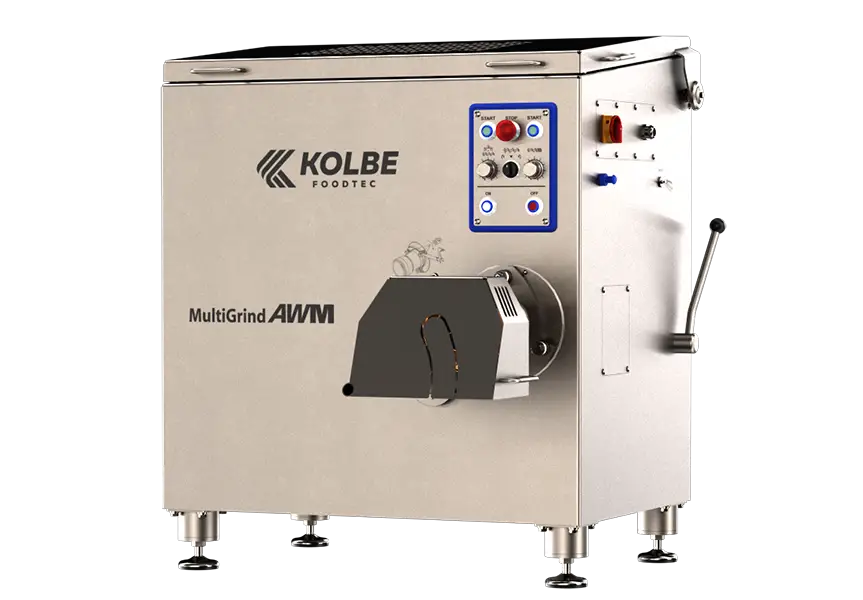

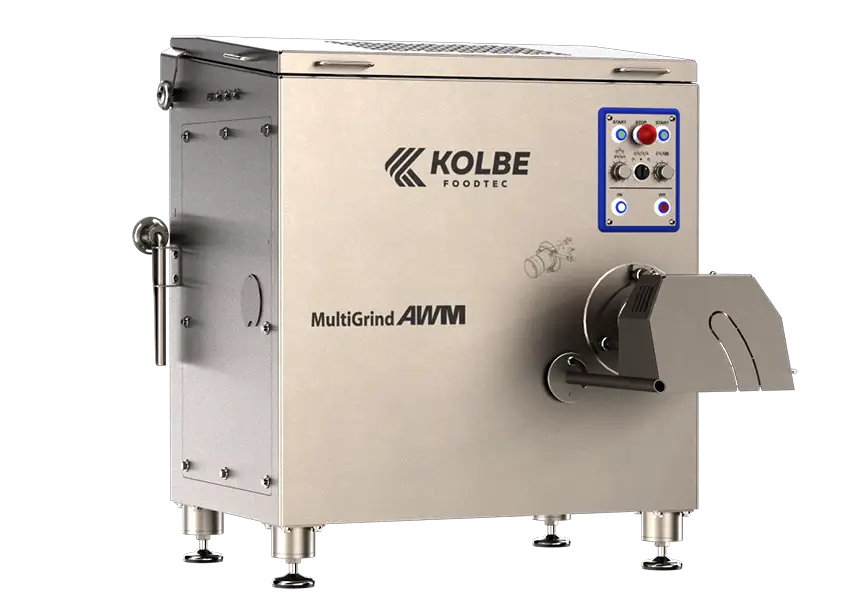

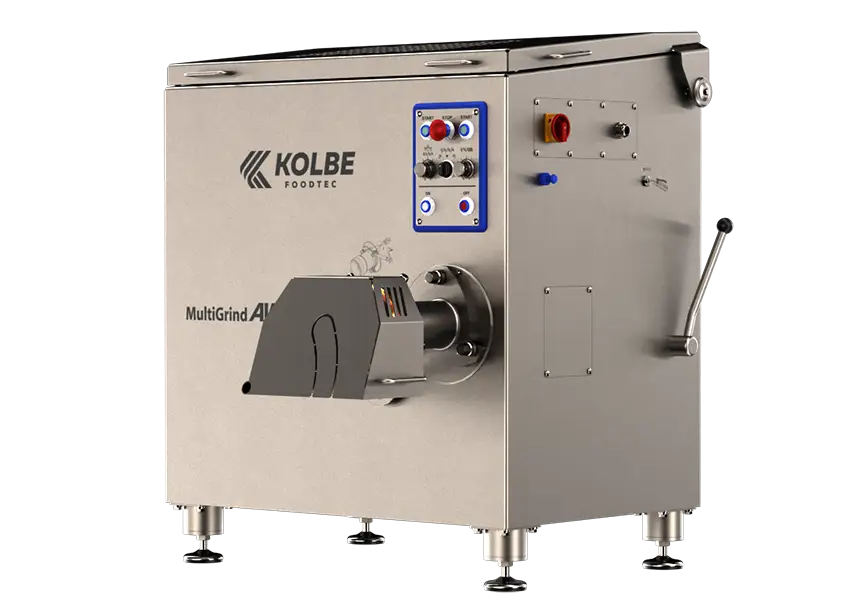

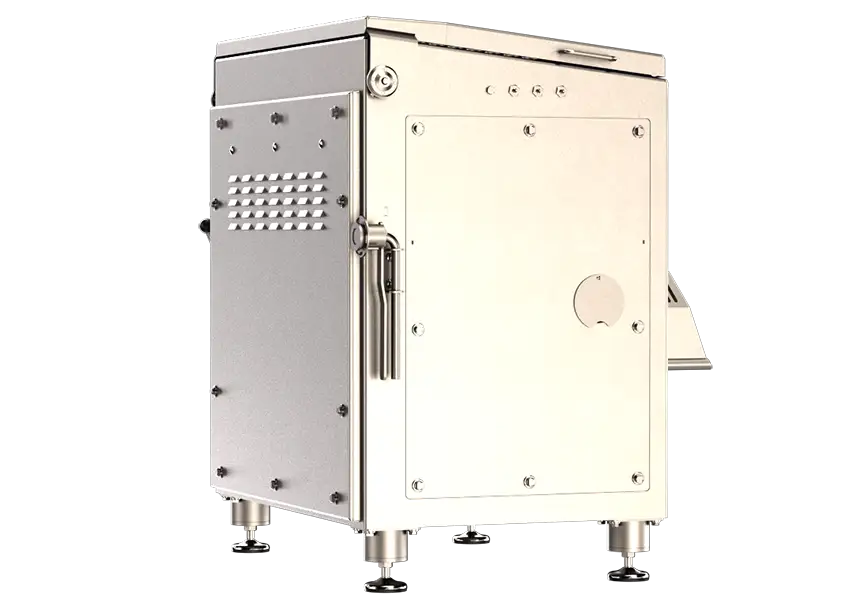

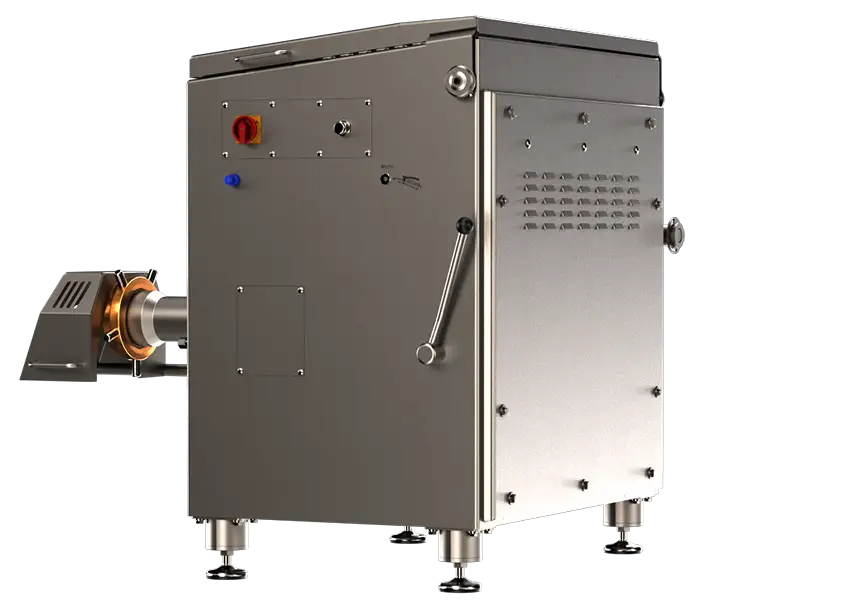

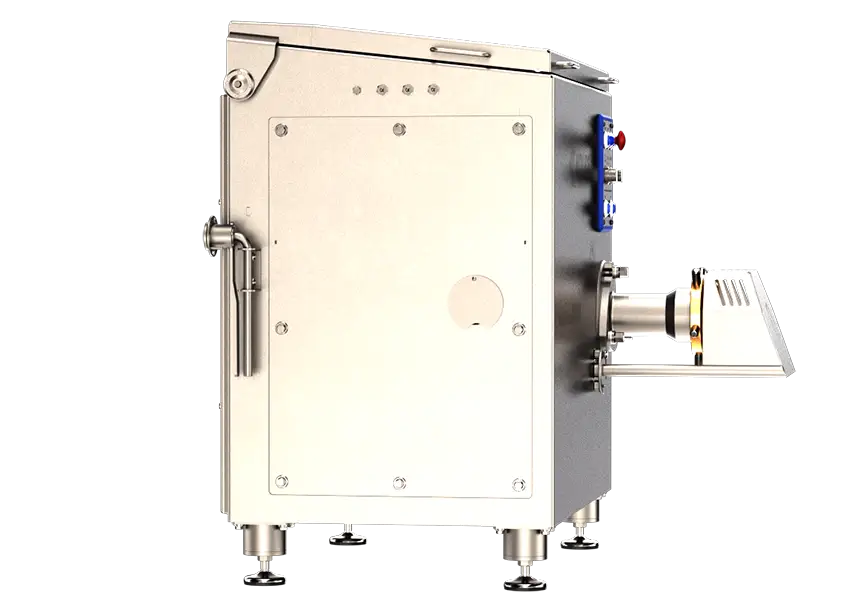

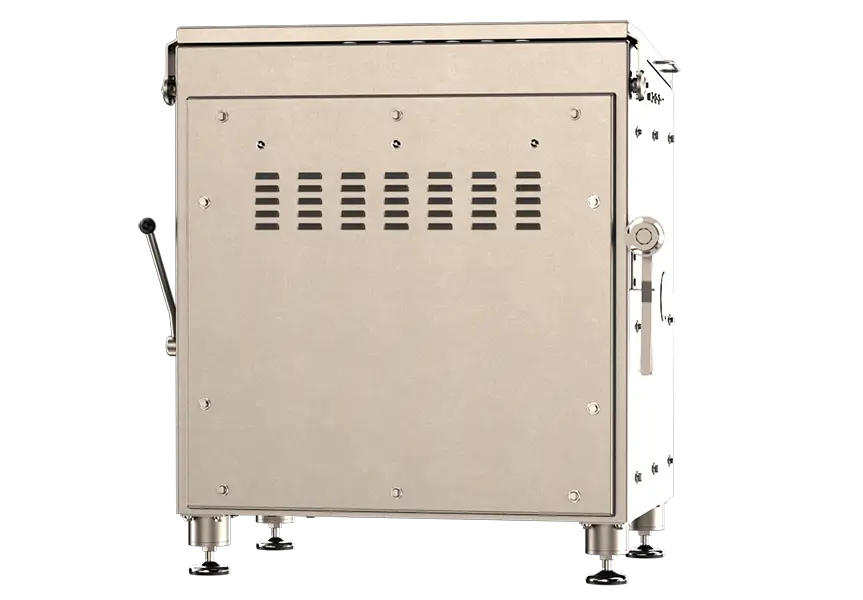

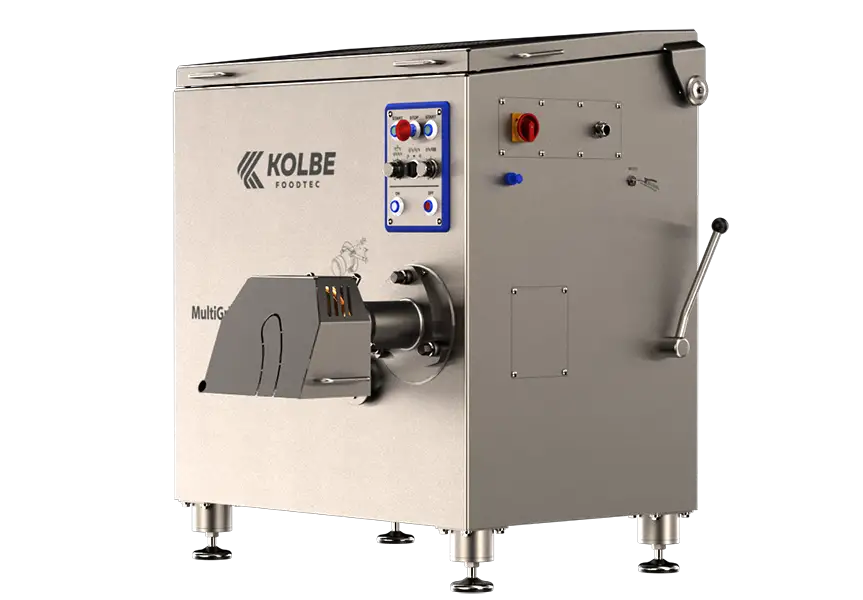

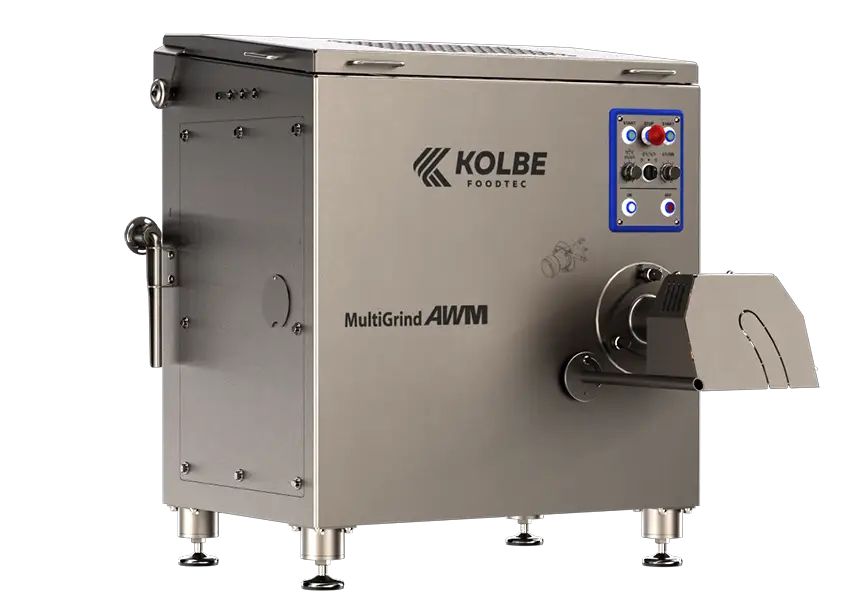

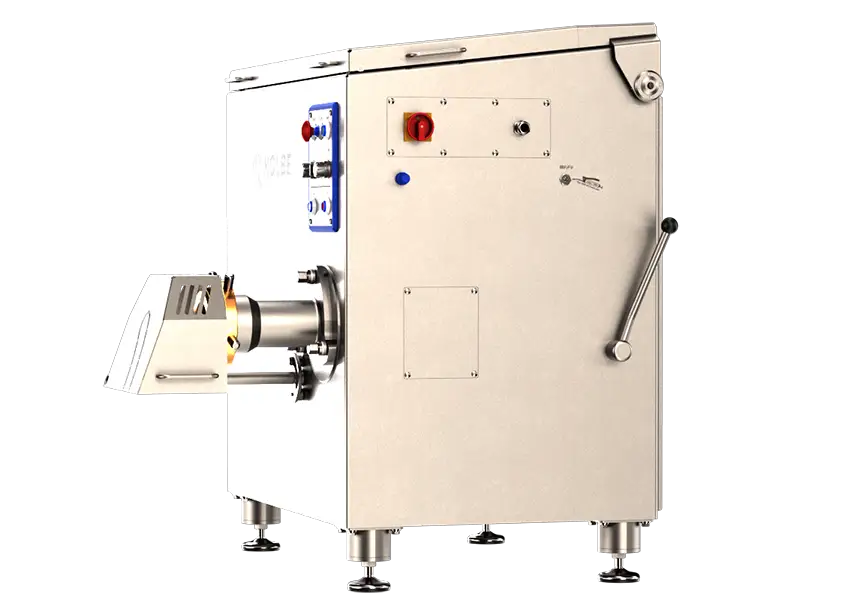

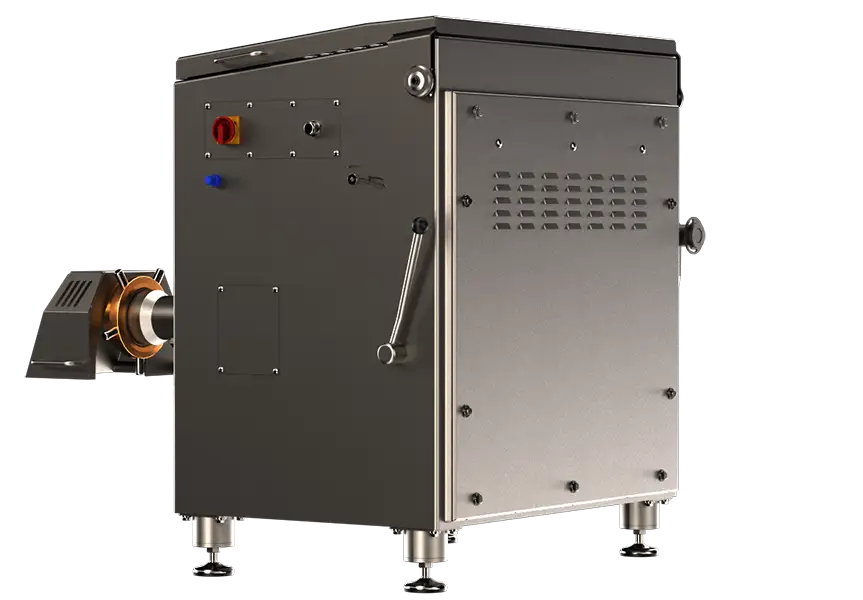

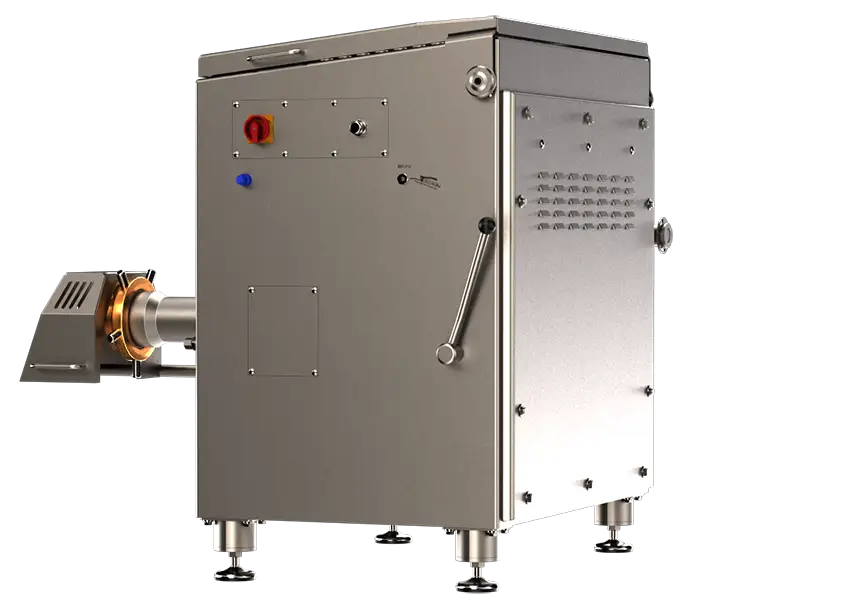

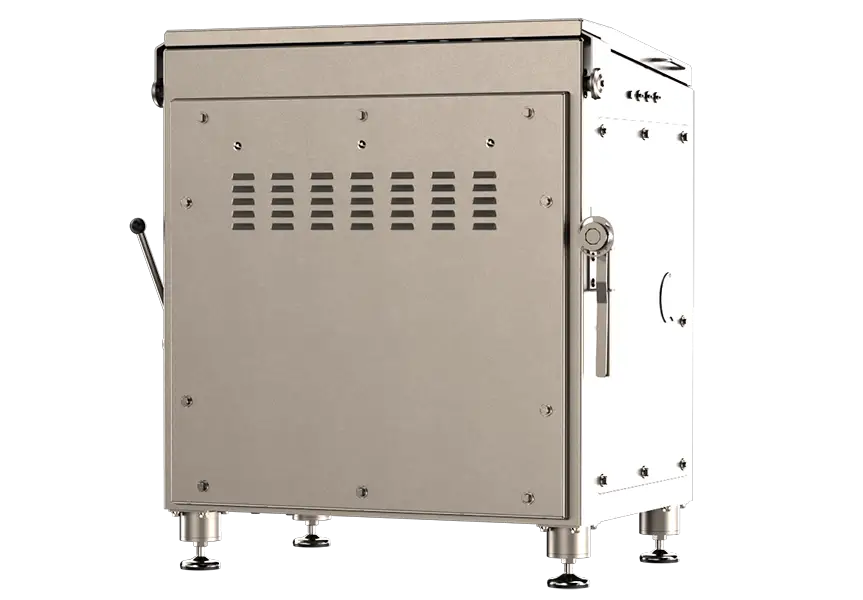

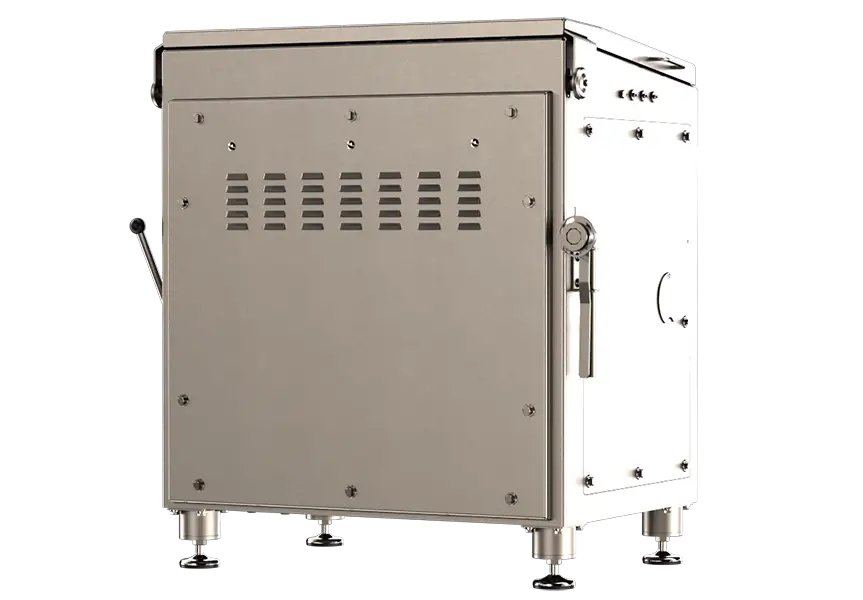

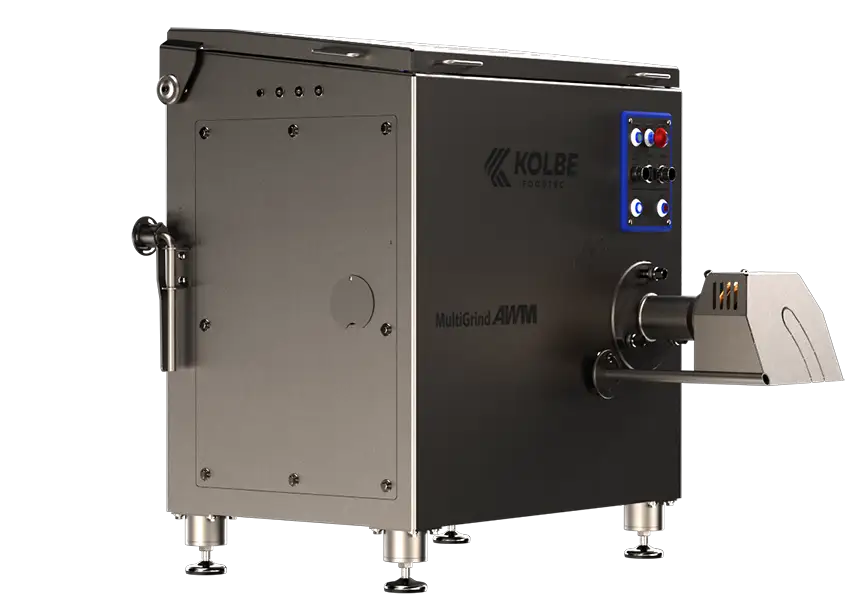

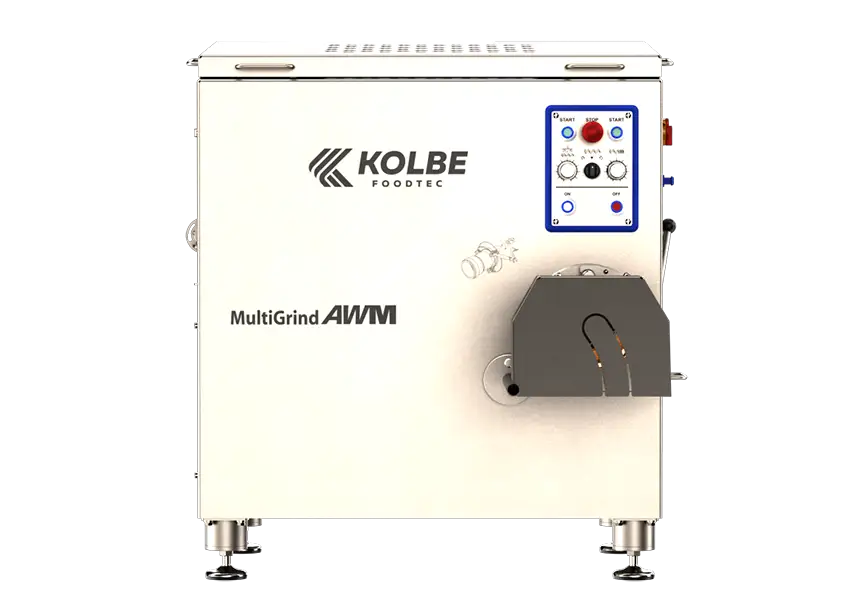

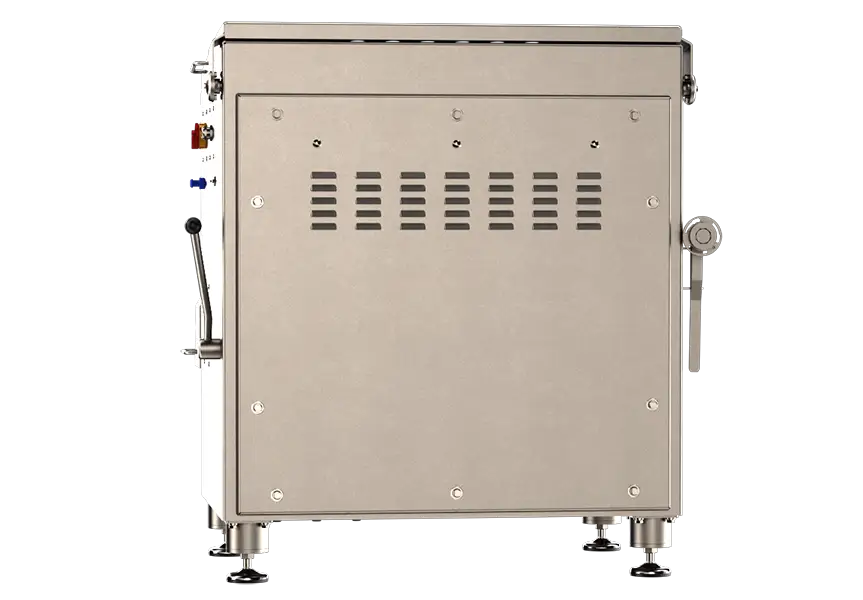

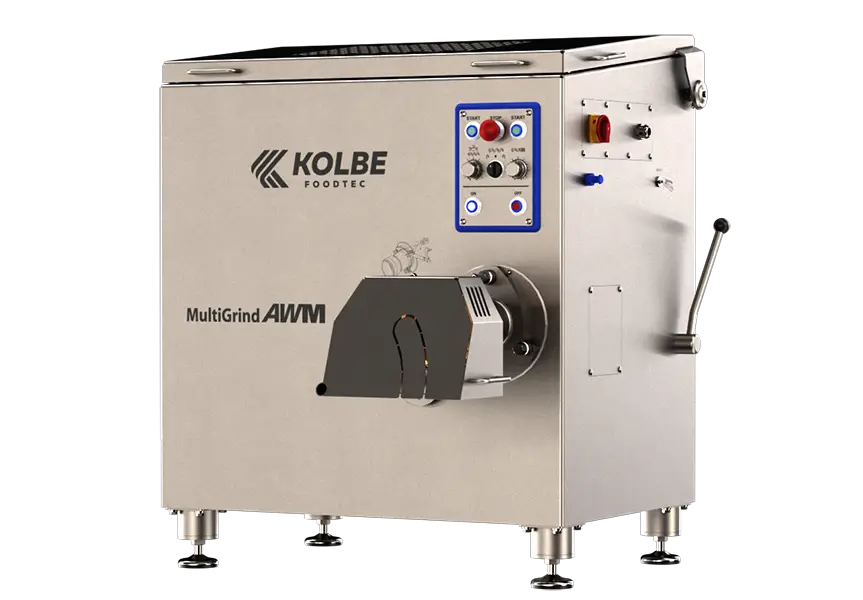

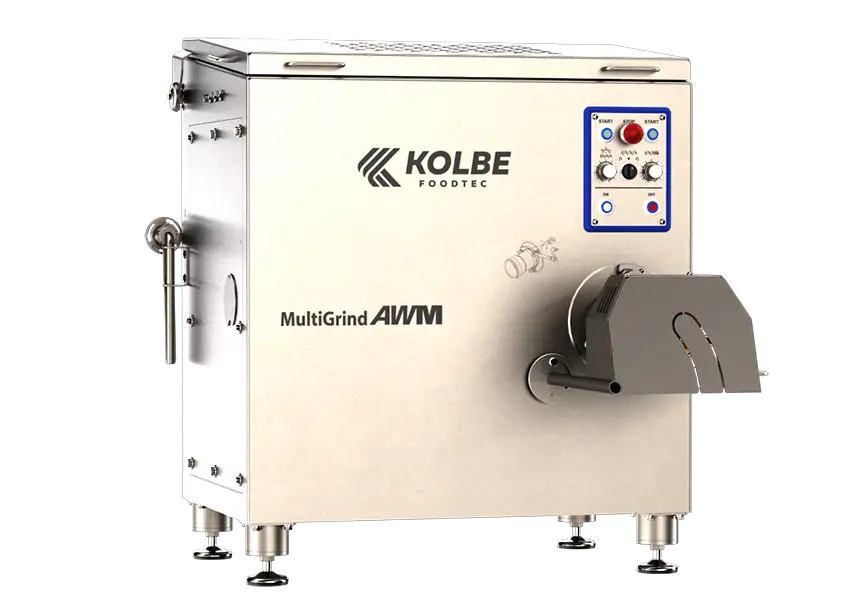

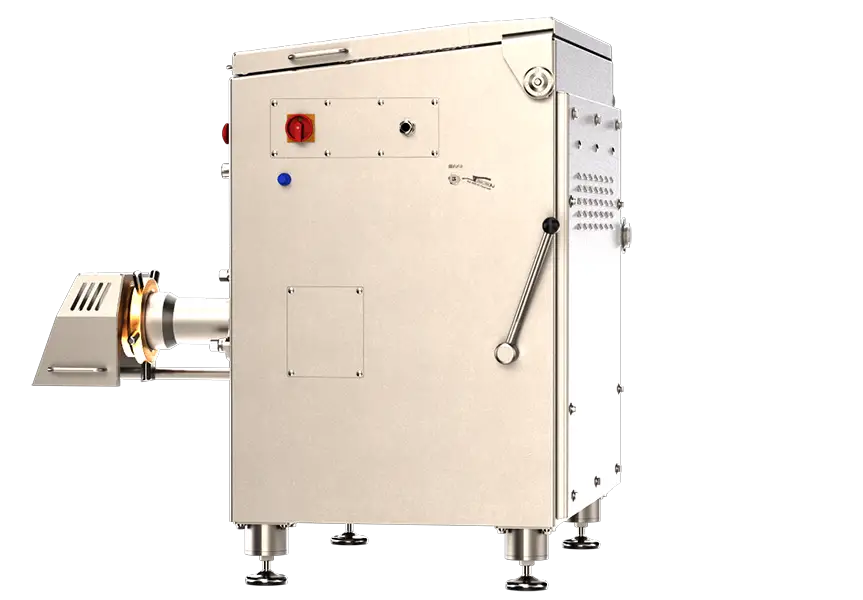

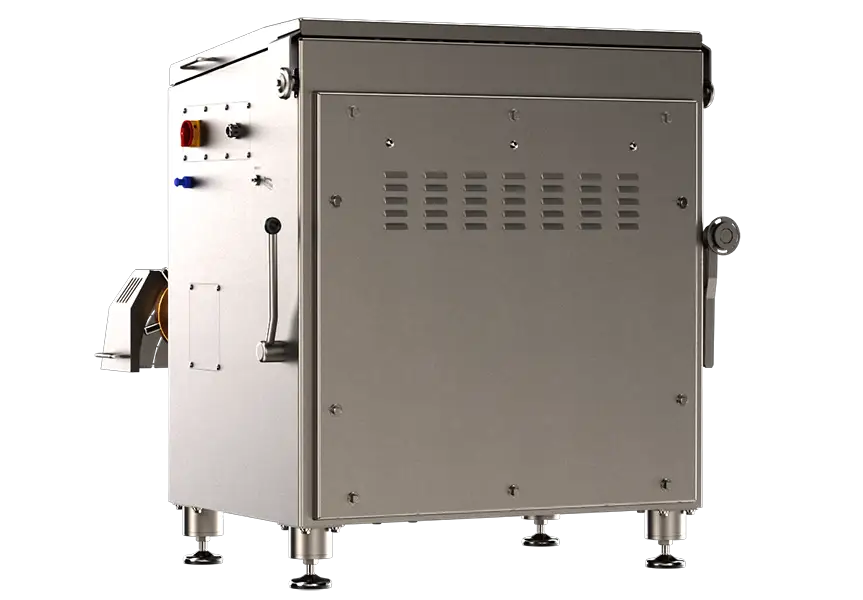

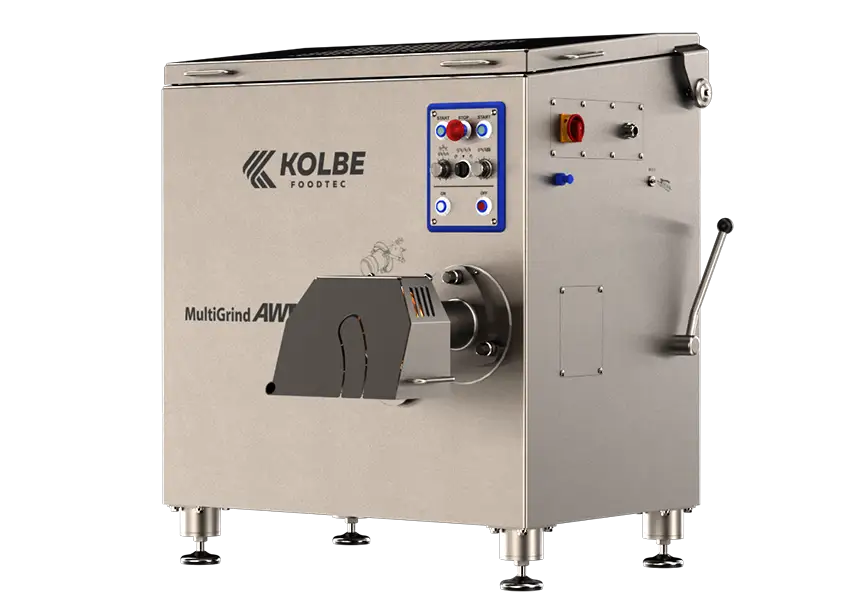

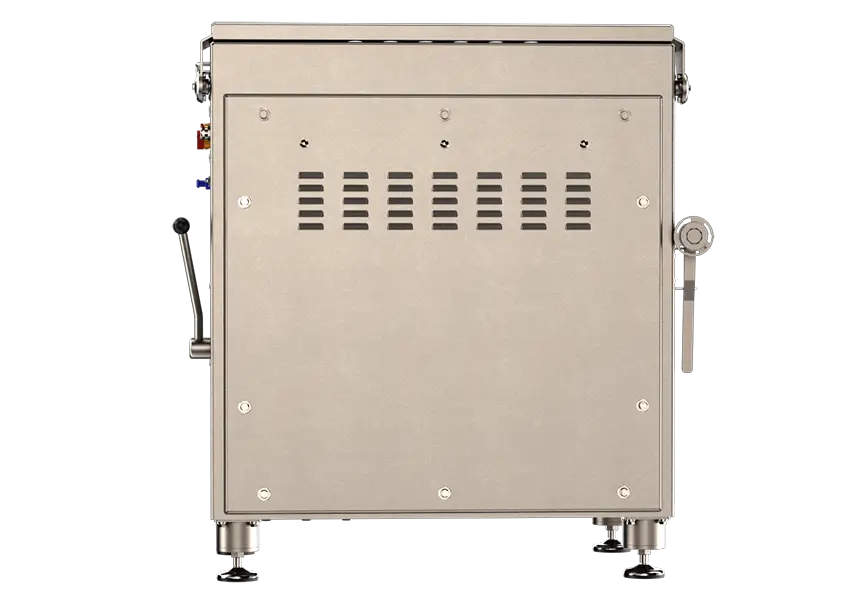

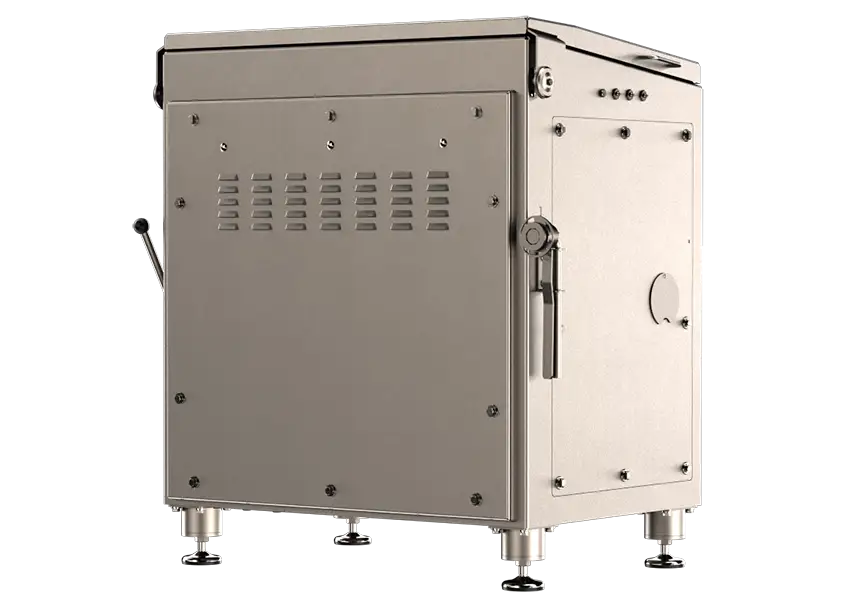

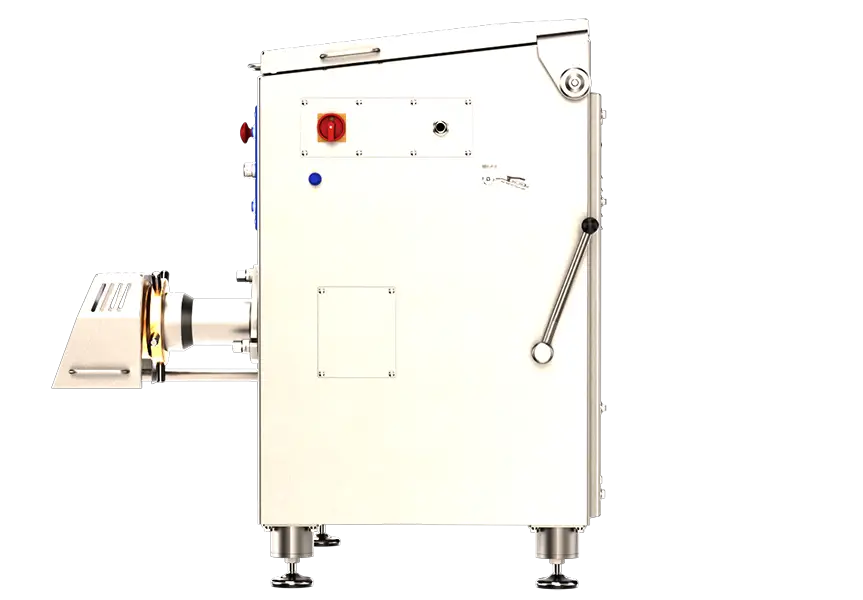

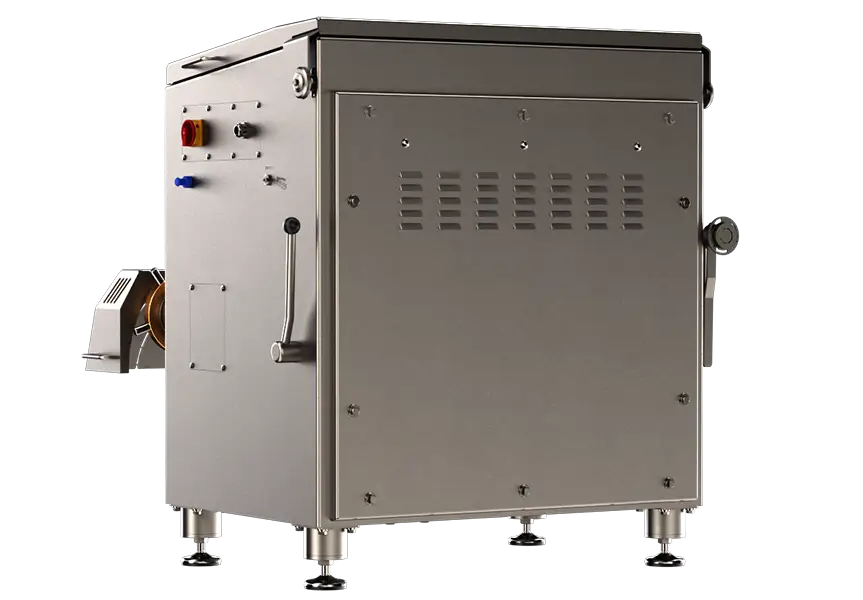

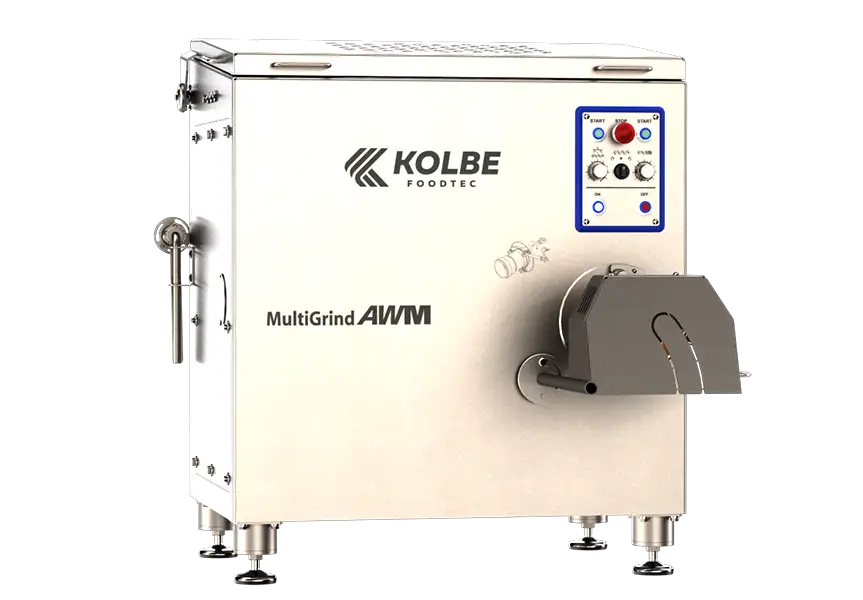

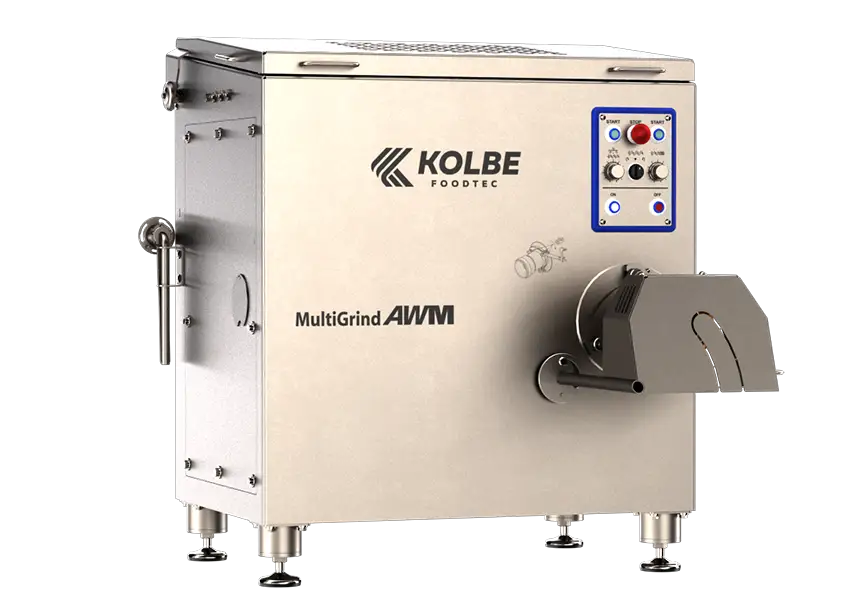

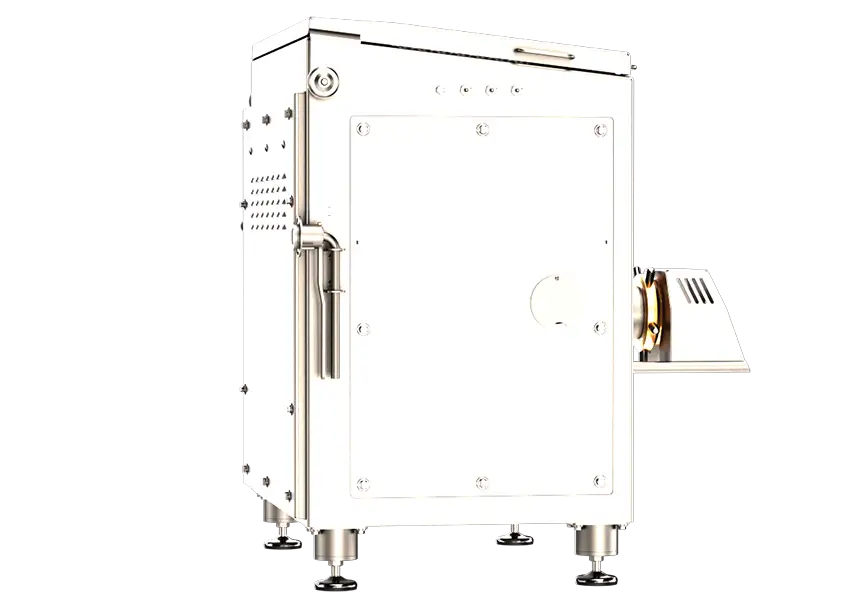

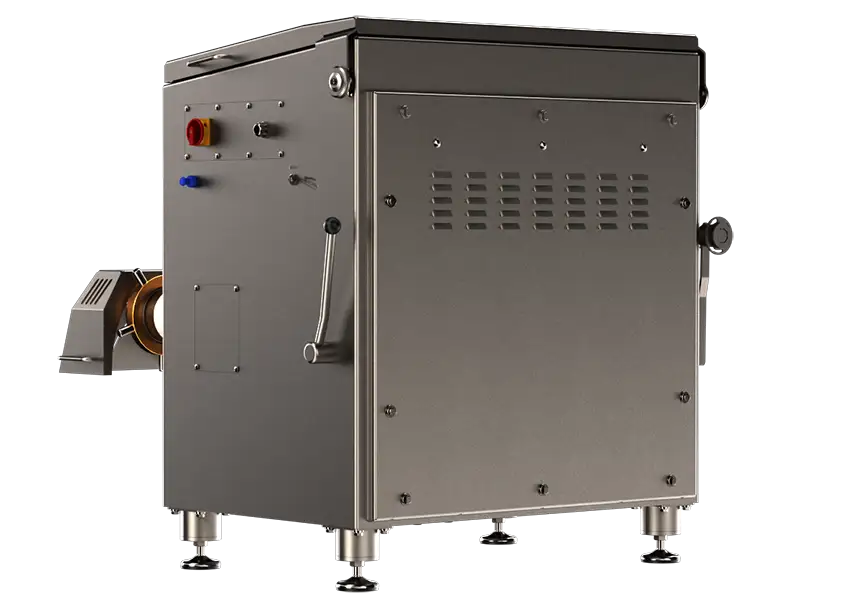

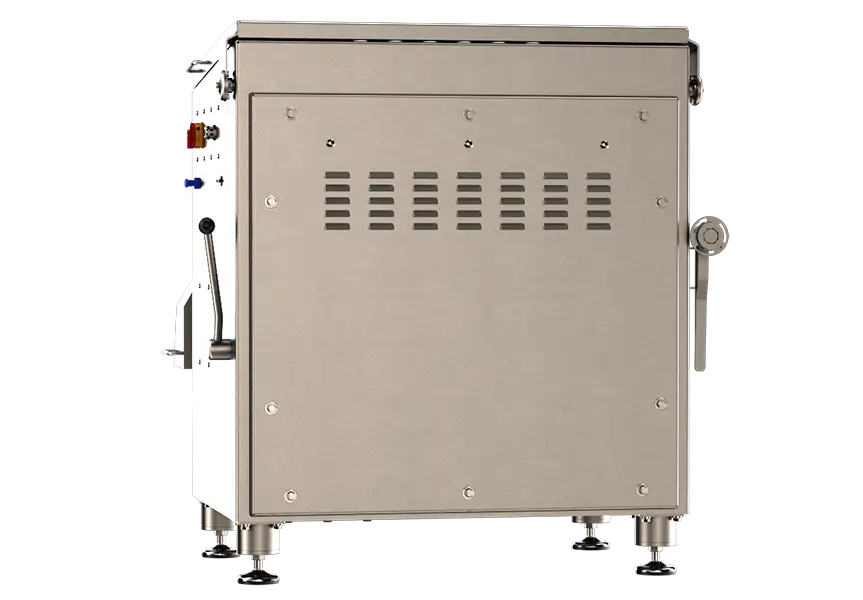

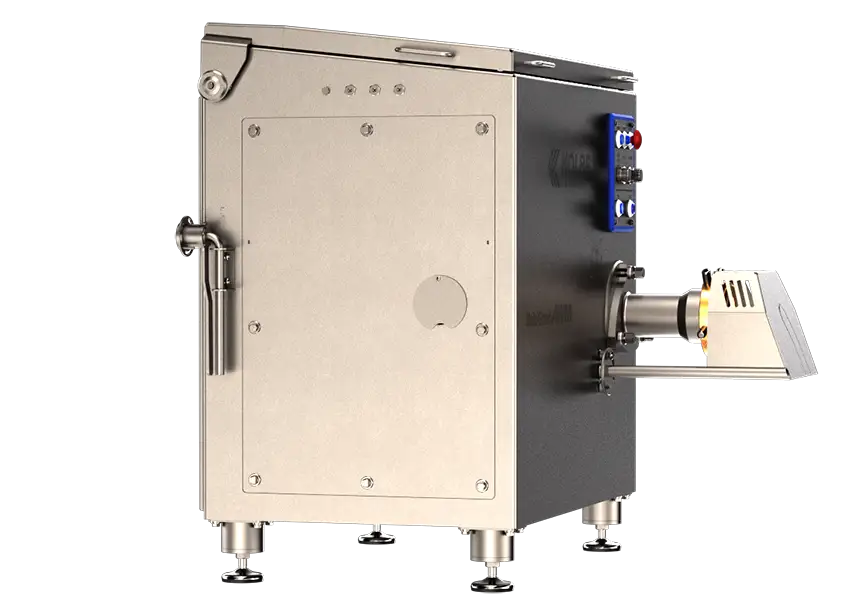

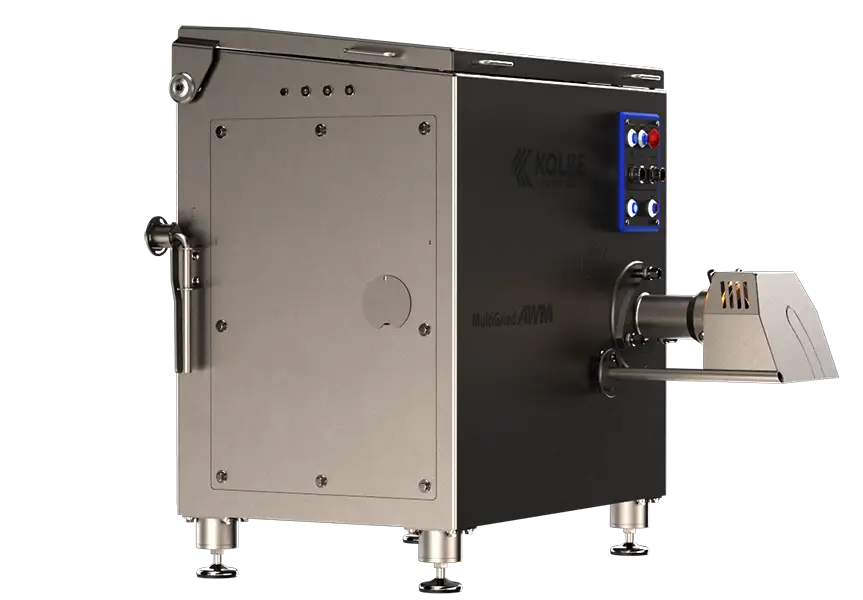

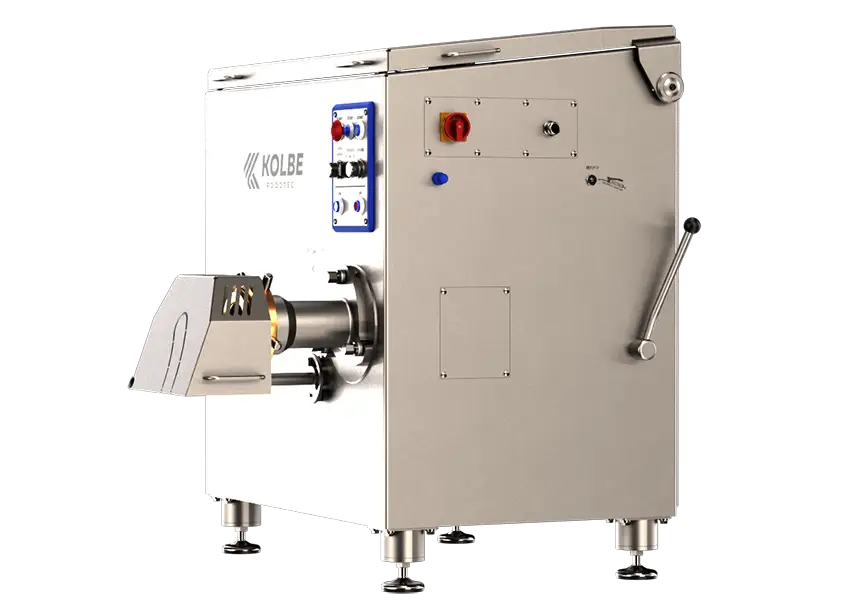

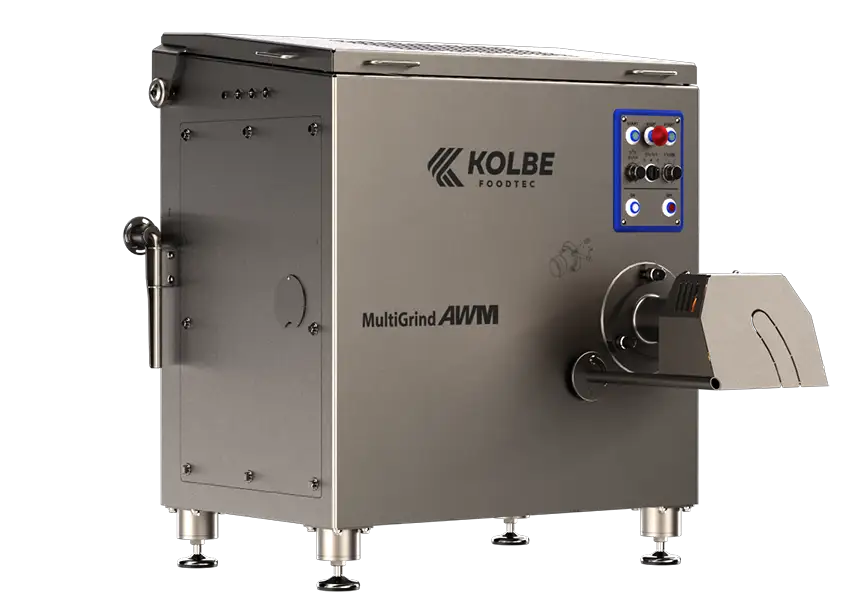

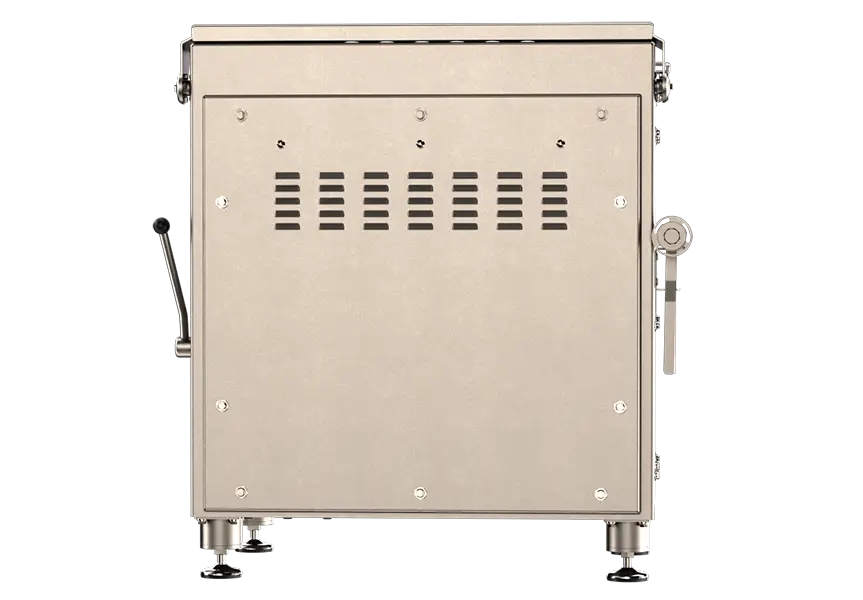

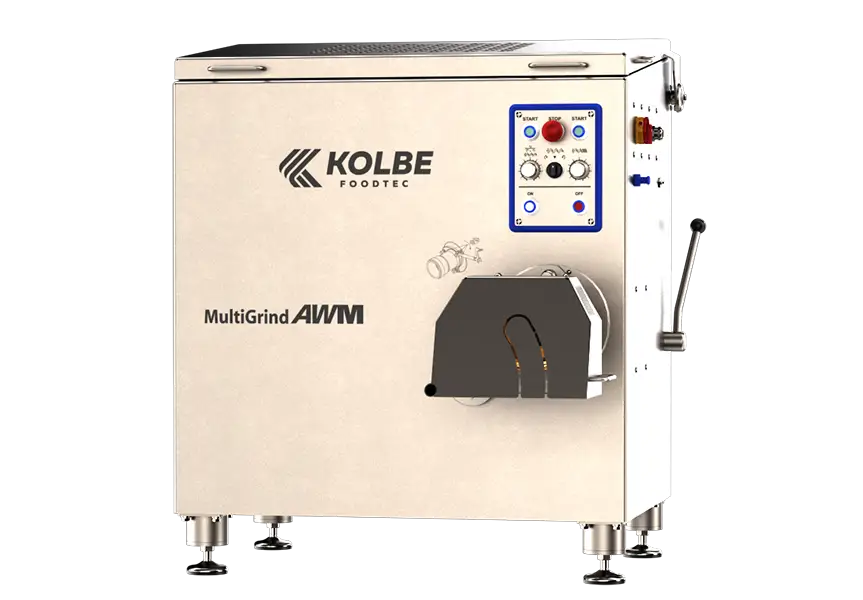

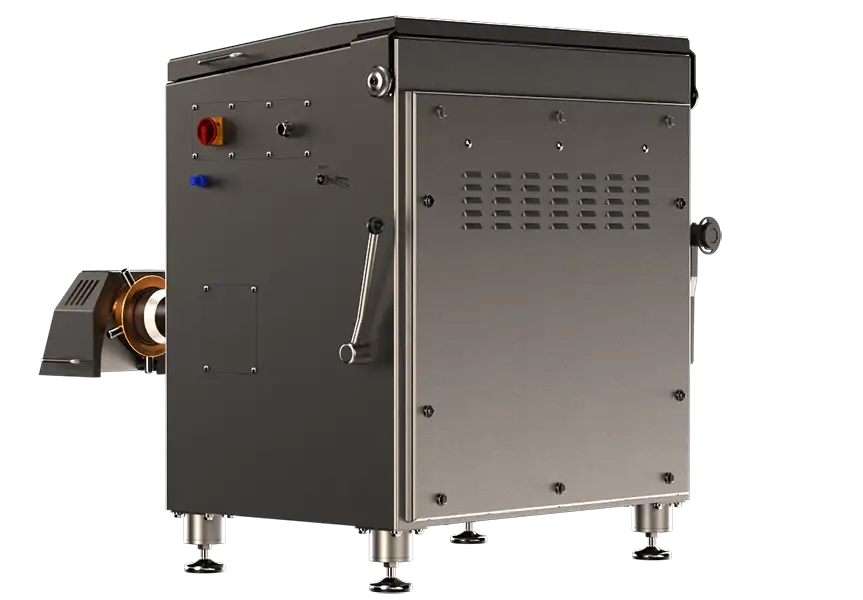

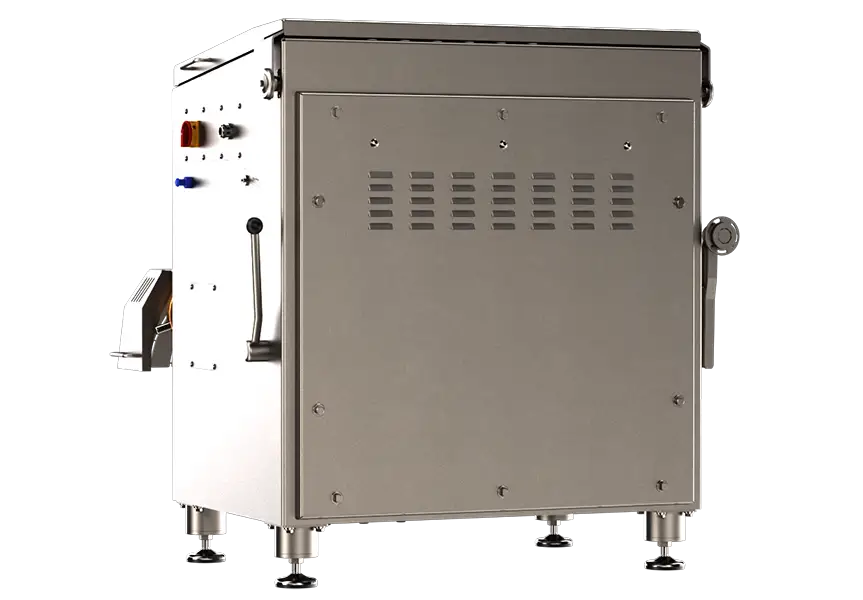

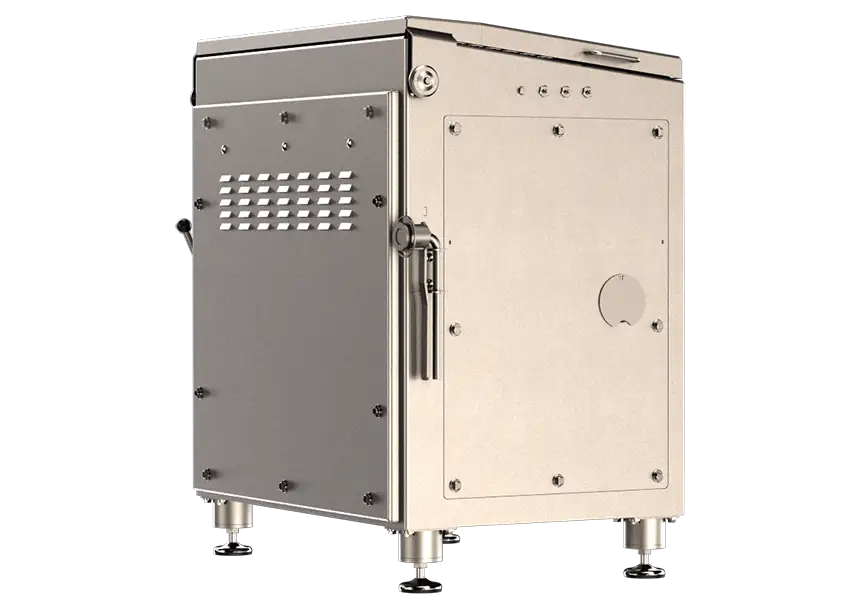

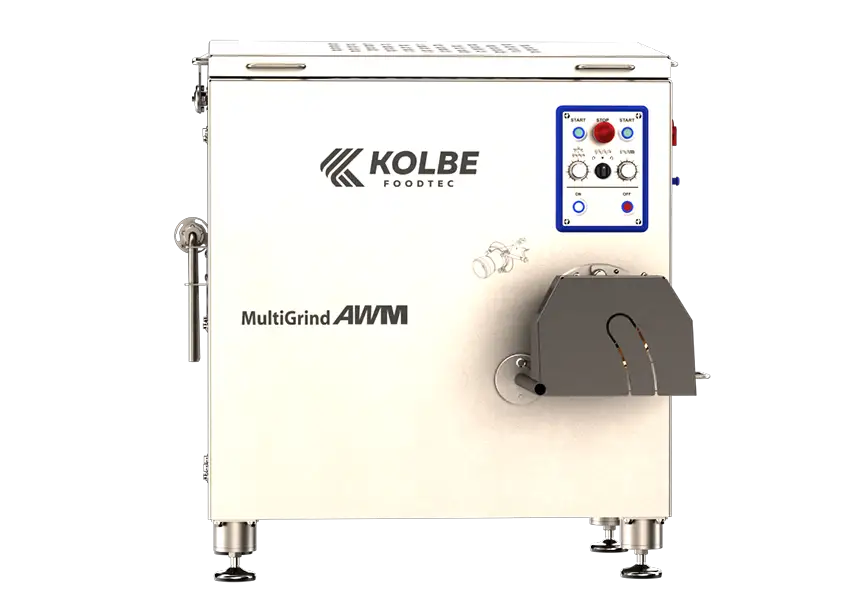

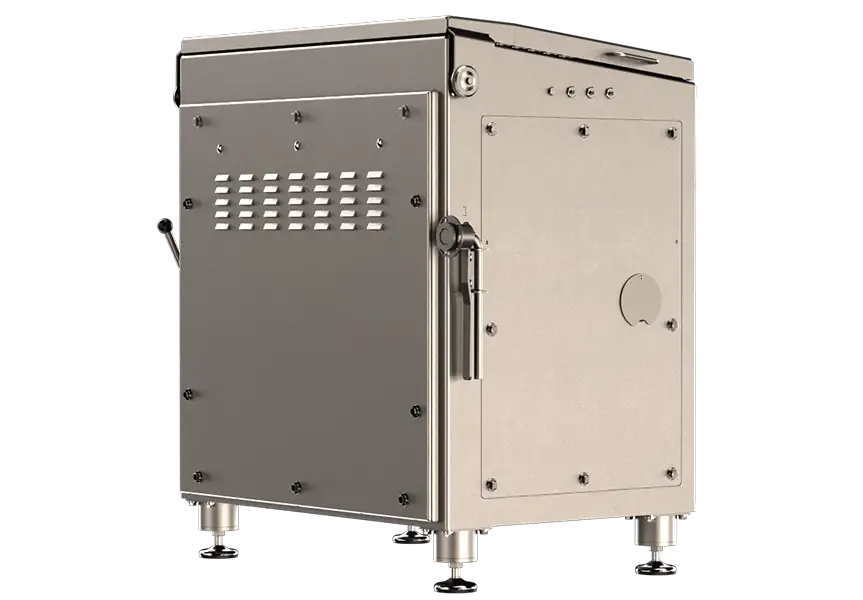

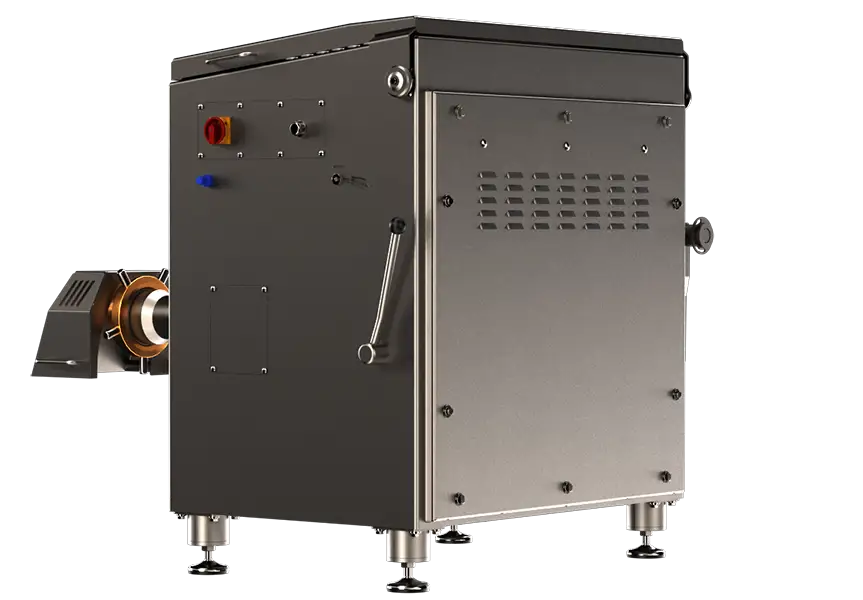

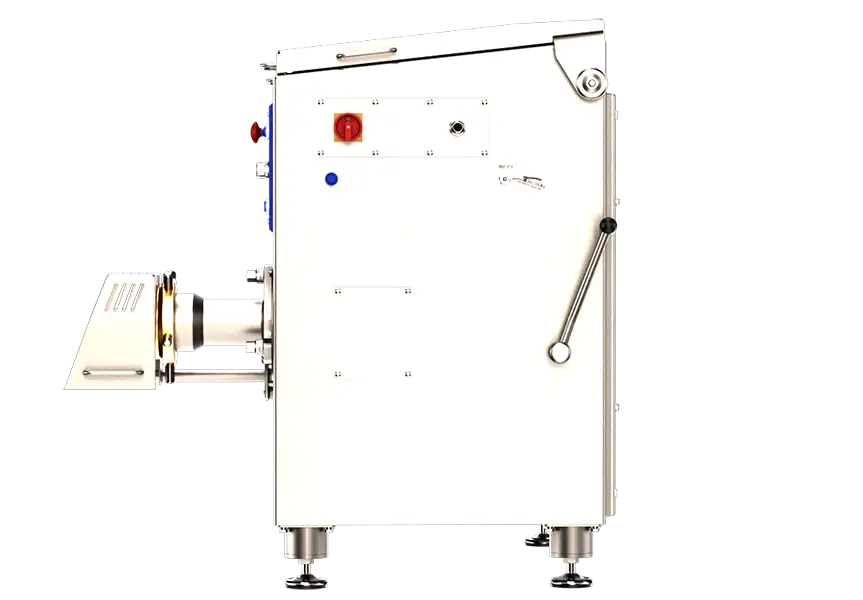

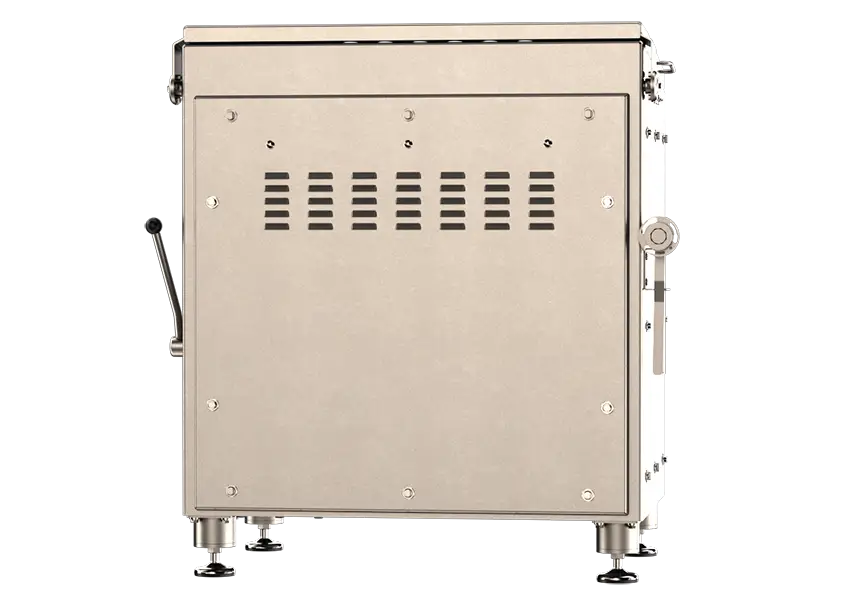

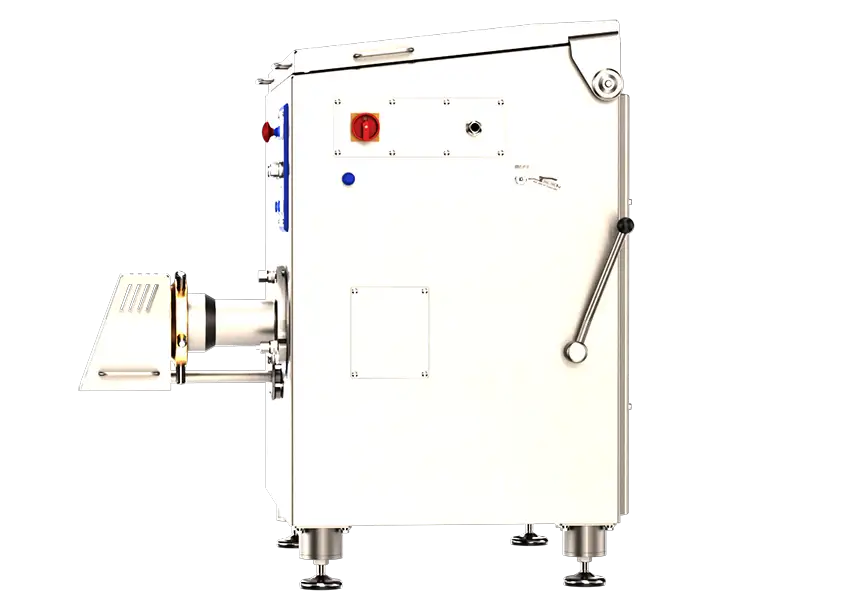

AWM130-100

The AWM114-100 have a very compact design and can be placed directly against walls or between machines. The frontal operabilitiy not only ensures an ergonomic filling of the funnel, but also allows a very space-saving installation of the machine. As a compact alternative to the larger models of our automatic crossfeed grinders, AMW114-100 impresses with its high output capacity and powerful drive.

Article number:
4900100

Technical Data

Specifications subject to change without notice. Dimensions may vary.

Motor rotary current/3Ph
10 + 1,5/400 kW/Volt
Output (depending on product)*
~1900 kg/h
Perforated plate-Ø
130 mm
External dimensions (W x D x H)
1248 x 1323 x 1320 mm
Hopper volume
100 Ltr.
Batch size (mixing/mincing)
80 kg

* Depending on cutting set and product – approx. data

Cutting system
Unger E130
Perforated plate-Ø
130 mm
Hopper volume
100 Ltr.
Hourly output with 3mm perforated plate
~1900 kg/h
External dimensions (W x D x H)
1248 x 1323 x 1320 mm
Motor voltage (3Ph)
400 V
Motor main drive / Protection system IP55
10 kW
Motor feeding drive / Protection system IP55
1,5 kW
Nominal current at 400 V – Main drive
20,5 A
Nominal current at 400 V – Feeding drive
3,2 A
Conductor size
6 mm²
Fusing at 400 V (A lazy)
32 A
Input height
1189 mm
Lower housing height (with cover)
464 mm
Noise level
70,8 db (A)
Weight (net.)
~812 kg (mit Haube)

Stainless steel machine / stainless lock nut / push-button-control / worm ejection / socket wrench SW 24 / combi hook spanner / I-speed version / 4 height adjustable anti vibration metal-feet / feeding worm prefilling function / cable connection with CEE phase plug / mixing device (mixing arm) with separate drive / autoreverse function

Cutting system Unger
Outlet protection cover
Push button control
Combi hook spanner
Cable connection with CEE phase plug
Mixing device (mixing arm)
Perfect hygiene

Precutter retain unit / mixing time preselection /  variable speed (stepless) of working worm 10kW / tool trolley for equipment and tools / KOLBE dynamic separating system KDS130

Mixing time preselection
Variable speed (stepless)
Tool trolley
KOLBE dynamic separating system KDS130
