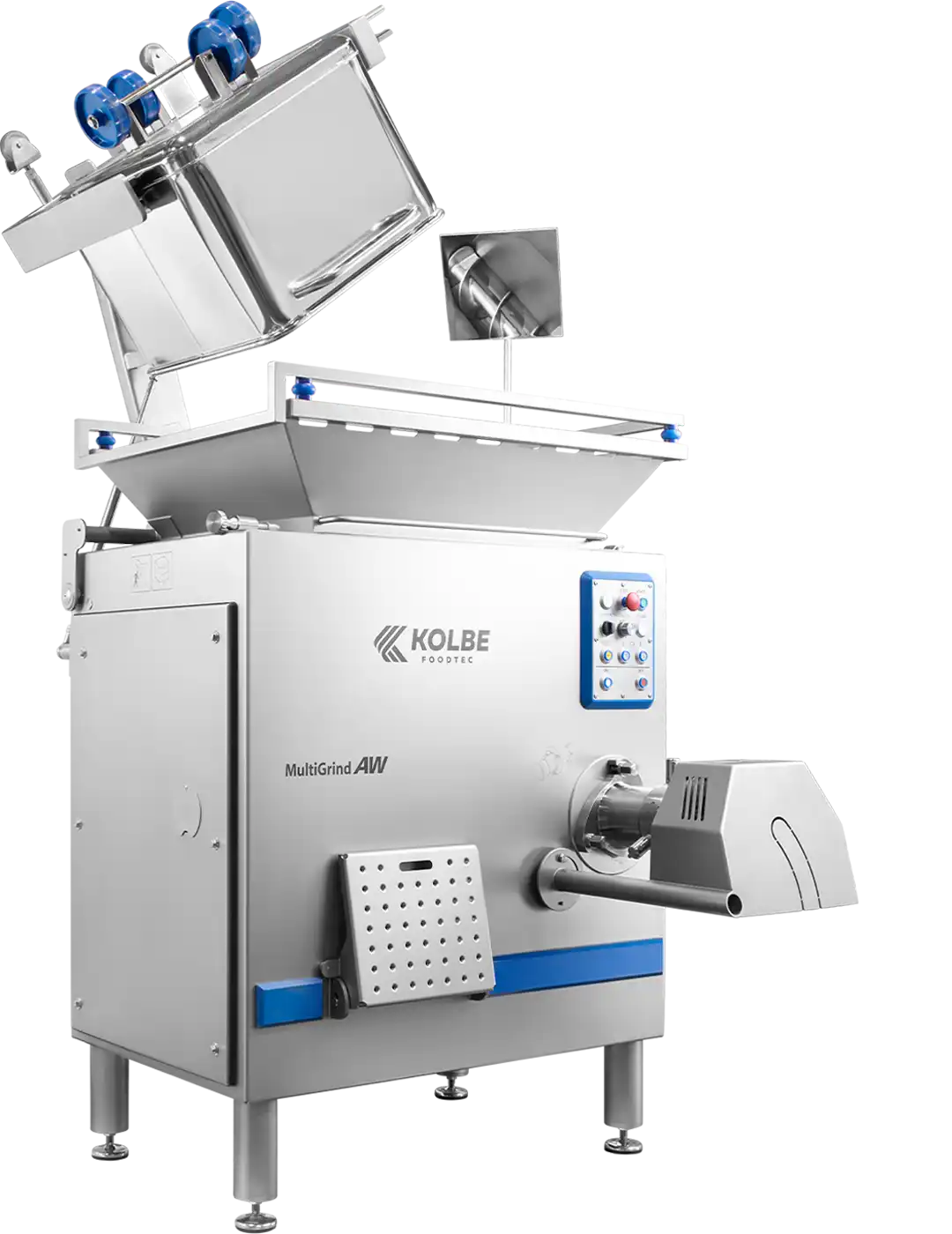

AW160-240

The automatic crossfeed grinders with their strong drives meet the highest demands on processing and hourly output. They are very suitable for the processing of big meat parts, fresh and frozen up to −16°C. The MultiGrind grinders can be equipped with the Enterprise cutting system in sizes E52 or E56 or the Unger cutting system in sizes 130 or 160. With the Unger G160 cutting system the AW160–240 is able to perform an hourly output of up to 4000 kg with a volume of approx. 240 kg.

Article number:
3800460

Technical Data

Specifications subject to change without notice. Dimensions may vary.

Motor rotary current/3Ph
30,0 + 1,5/400 kW/Volt
Output (depending on product)*
~4000 kg/h
Perforated plate-Ø
160 mm
Working worm speed level
~200 min-1
External dimensions (W x D x H)
1478 x 1496 x 1975 mm
Total hopper volume
~360 Ltr.
Batch size (mincing)
220 kg

* Depending on cutting set and product – approx. data

Cutting system
Unger G160
Perforated plate-Ø
160 mm
Total hopper volume
~360 Ltr.
Hourly output with 3mm perforated plate
~4000 kg/h
External dimensions (W x D x H)
1478 x 1496 x 1975 mm
Motor voltage (3Ph)
400 V
Motor main drive / Protection system IP55
30 (22) kW
Motor feeding drive / Protection system IP55
1,5 kW
Motor loosening device drive / protection system IP55
1,5 kW
Nominal current at 400 V – Main drive
54 (40,5) A
Nominal current at 400 V – Feeding drive
3,1 A
Nominal current at 400 V Mixing and loosening device drive (opt.)
3,1 A
Conductor size
25 (16) mm²
Fusing at 400 V (A lazy)
63 (50) A
Input height
1978 mm
Lower housing height (with cover)
733 mm
Noise level
68,8 db (A)
Weight (net.)
~1000 – 1100 kg

Stainless steel machine / feeding hopper with safety frame / outlet protection cover / stainless lock nut / push-button-control / hydraulic worm ejection / socket wrench SW 24 / combi hook spanner / I-speed version / 4 height adjustable anti vibration metal-feet / feeding worm prefilling function / cable for main connection

Cutting sytem Unger
Feeding hopper with safety frame
Outlet protection cover
Push button control
Combi hook spanner
Perfect hygiene

Precutter retain unit / chopping shaft – capacity 1,5kW / loosening device – capacity 1,5 kW / variable speed (stepless) of working worm 15kW or 30kW / hoist feed loader FD 200 / attached swivel arm feeding HFD 200 / tool trolley for equipment and tools / KOLBE dynamic separating system KDS130

Variable speed (stepless)
Loosening device drive (various versions)
Chopping shaft drive
Tool trolley
Hoist feed loader FD200
Swivel arm feeding HFD200 (attached)
KOLBE dynamic separating system KDS130
