K330RS

The K330RS model is equipped with a spherically seated sliding table, which allows for a precise portioning of frozen meat parts and fi sh blocks. With its high cutting precision, very good cross section and a brilliant cutting performance, the K330RS is highly suitable for supermarkets, butcheries and the meat market.

Article number:
2430060 – Left sided
2430070 – Right sided

Technical Data

Specifications subject to change without notice. Dimensions may vary.

Motor rotary current/3Ph
1,5/400 kw/Volt
Saw band measurements
2490 x 16 mm
Cut side passage (max.)
282 mm
Cut height passage (max.)
311 mm
Cutting stroke (max.)
308 mm
External dimensions (W x D x H)
834 x 836 x 1772 mm
Eine technische Zeichnung mit Maßangaben der K330RS Bandsäge von Kolbe.
Wheel diameter
300 mm
Saw band measurements
2490 x 16 mm
Blade speed
22 m/s
Cut side passage (max.)
282 mm
Cut height passage (max.)
311 mm
Cutting stroke (max.)
308 mm
Section of portioning
5 - 270 mm
Table dimensions (W x D x H)
682 x 775 x 910 mm
Sliding table
400 x 775 mm
External dimensions (W x D x H)
834 x 836 x 1772 mm
Motor capacity / Protection system IP54 (Optional)
1,5 kW
Nominal current at 230 V 400 V (Optional)
5,9 / 3,4 A
Conductor size
1,5 mm²
Fusing at 230 V / 400 V (A lazy)
16 / 16 A
Noise level
72 db (A)
Weight (net.)
??? fehlt

Stainless steel machine / fixed table / material pusher / push-button-control / stainless wheels / motor brake / motor protection / 4 height adjustable
anti vibration metal-feet / cable connection with CEE phase plug / 1 bandsaw blade

Precise saw blade guide
asd
3-side saw blade protection
Push-button-control
Removable scrapers
Stainless wheels
Quick tensioning
Portioning device

The bandsaw is available as a right sided, as well as left sided version. The K330RS is also available as a mobile version with with 2 swivel and 2 fixed castors.

Right sided version
Mobile version
Product Catalogue

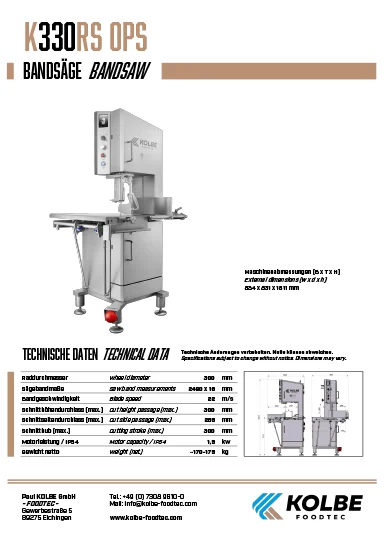

Datasheet: K330RS Bandsaw
