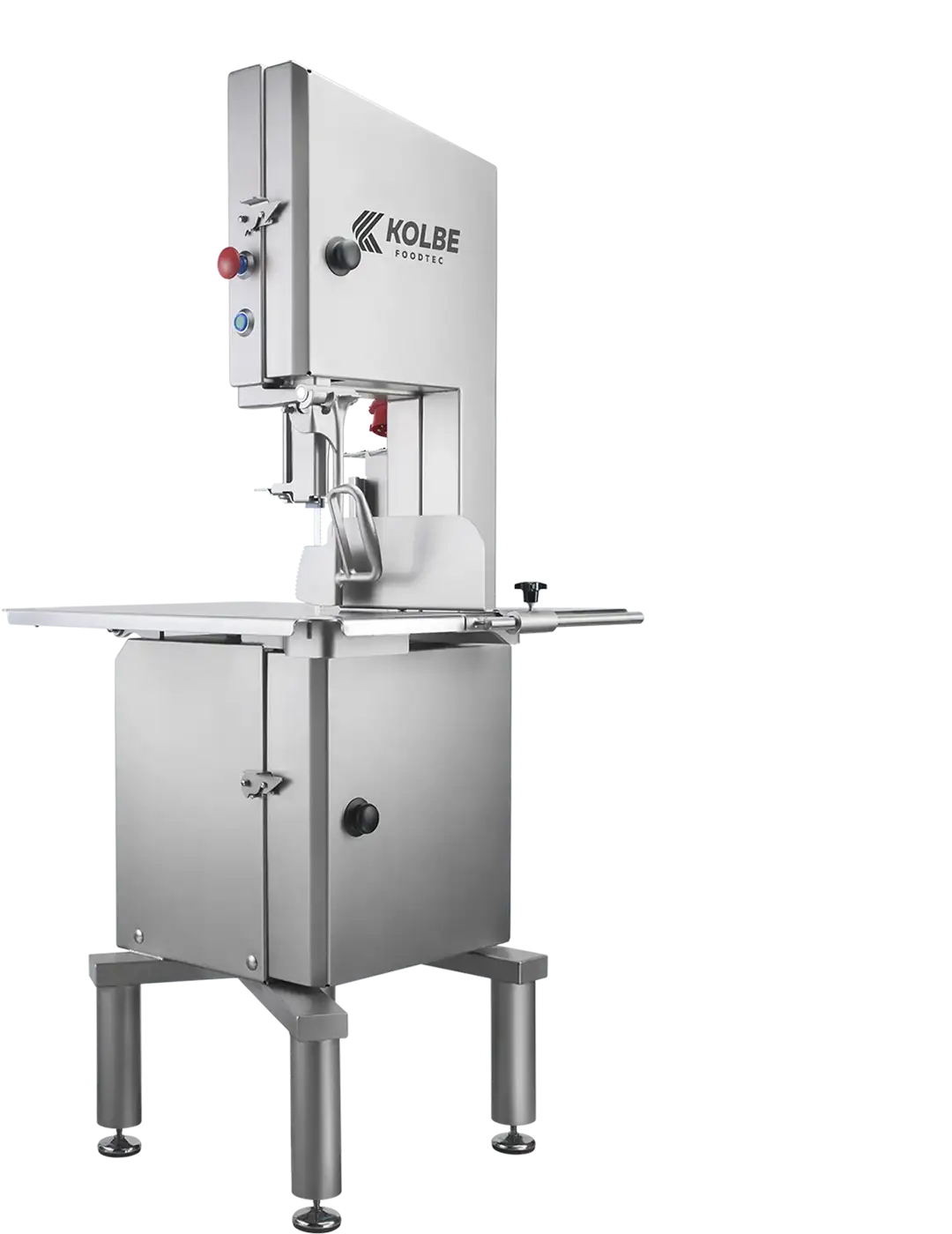

K330

The economy model of our range of professional bandsaws. The higher blade speed and the topnotch cutting performance allow for the K330 to break down fresh and frozen hollow bones and meat parts.

Article number:
2430000 – Left sided
2430030 – Right sided

Technical Data

Specifications subject to change without notice. Dimensions may vary.


Motor rotary current/3Ph	1,5/400 kw/Volt
Saw band measurements	2490 x 16 mm
Cut side passage (max.)	282 mm
Cut height passage (max.)	311 mm
Cutting stroke (max.)	297 mm
External dimensions (W x D x H)	749 x 815 x 1772 mm


Wheel diameter	300 mm
Saw band measurements	2490 x 16 mm
Blade speed	22 m/s
Cut side passage (max.)	282 mm
Cut height passage (max.)	311 mm
Cutting stroke (max.)	297 mm
Section of portioning	5 - 270 mm
Table dimensions (W x D x H)	590 x 765 x 910 mm
External dimensions (W x D x H)	749 x 815 x 1772 mm
Motor capacity / Protection system IP54 (Optional)	1,5 kW
Nominal current at 230 V 400 V (Optional)	5,9 / 3,4 A
Conductor size	1,5 mm²
Fusing at 230 V / 400 V (A lazy)	16 / 16 A
Noise level	72 db (A)
Weight (net.)	~170 -175 kg

Stainless steel machine / fixed table / portioning device / material pusher / push-button-control / stainless wheels / motor brake / motor protection / 4 height adjustable anti vibration metal-feet / cable connection with CEE phase plug / 1 bandsaw blade

The bandsaw is available as a right sided, as well as left sided version. The K330 is also available as a mobile version with with 2 swivel and 2 fixed castors.
