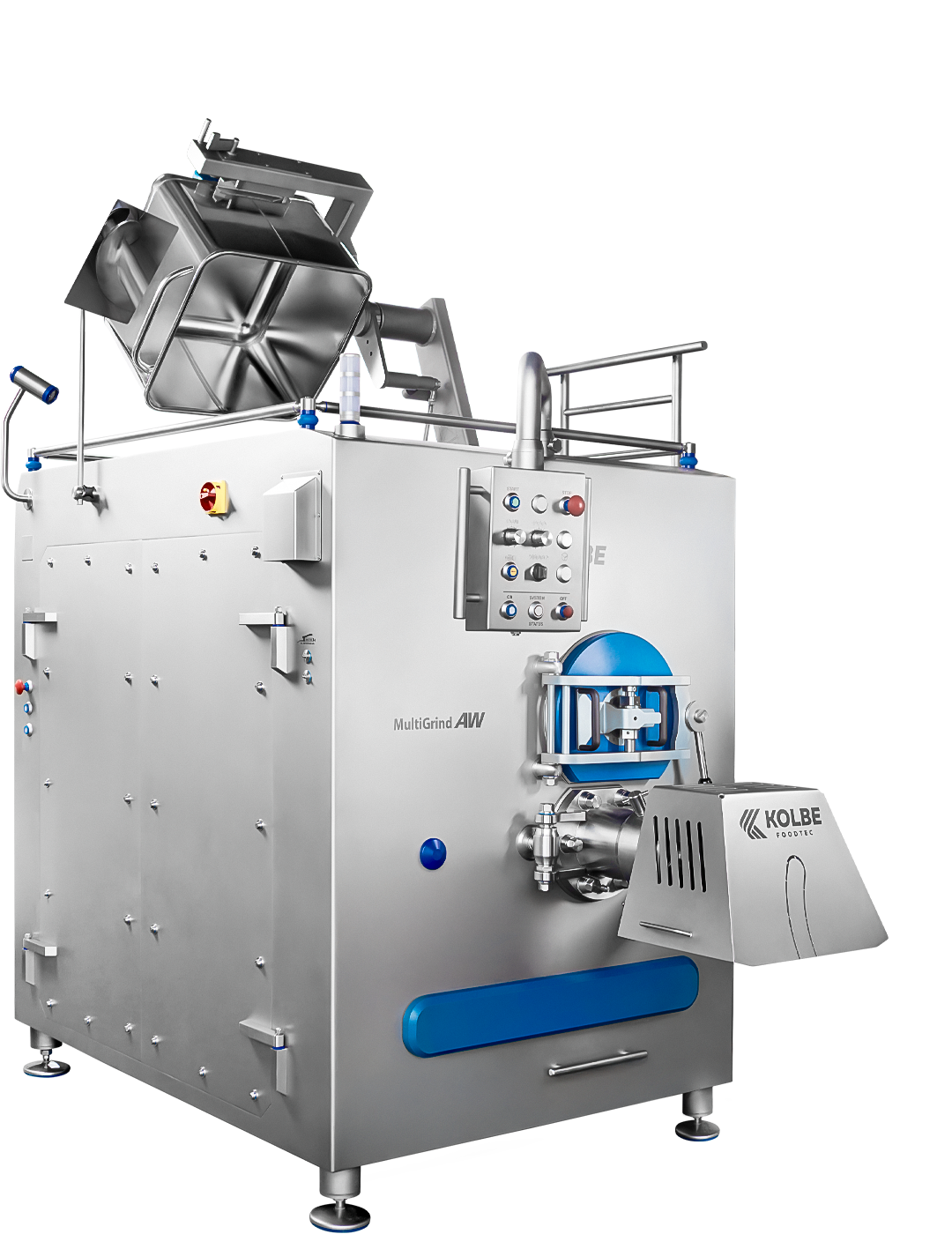

AW200-500

The new automatic grinder for industrial applications has been specially designed for the processing of frozen blocks at temperatures down to -20°C. The AW200-500 is also the ultimate powerhouse when it comes to fresh meat and impresses with its high flexibility in product processing. The hourly output is approximately 2,500 kg/h for frozen blocks and about 7,000 kg/h for fresh meat. The standard equipment includes the camera-based filling level monitoring. It ensures that the machine shuts down automatically as soon as the hopper has been completely emptied. The new AW200-500 is pure industry power – Made in Germany.

Article number:
3910000

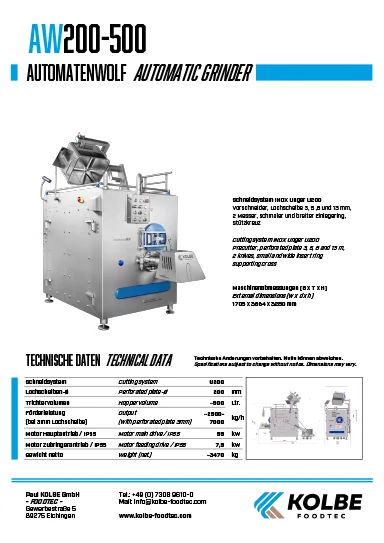

Technical Data

Specifications subject to change without notice. Dimensions may vary.


Motor rotary current/3Ph	55 + 7,5/400 kW/Volt
Output (with perforated plate 3mm*)	~2500-7000 kg/h
Perforated plate-Ø	200 mm
Working worm speed level	~135-200 min-1

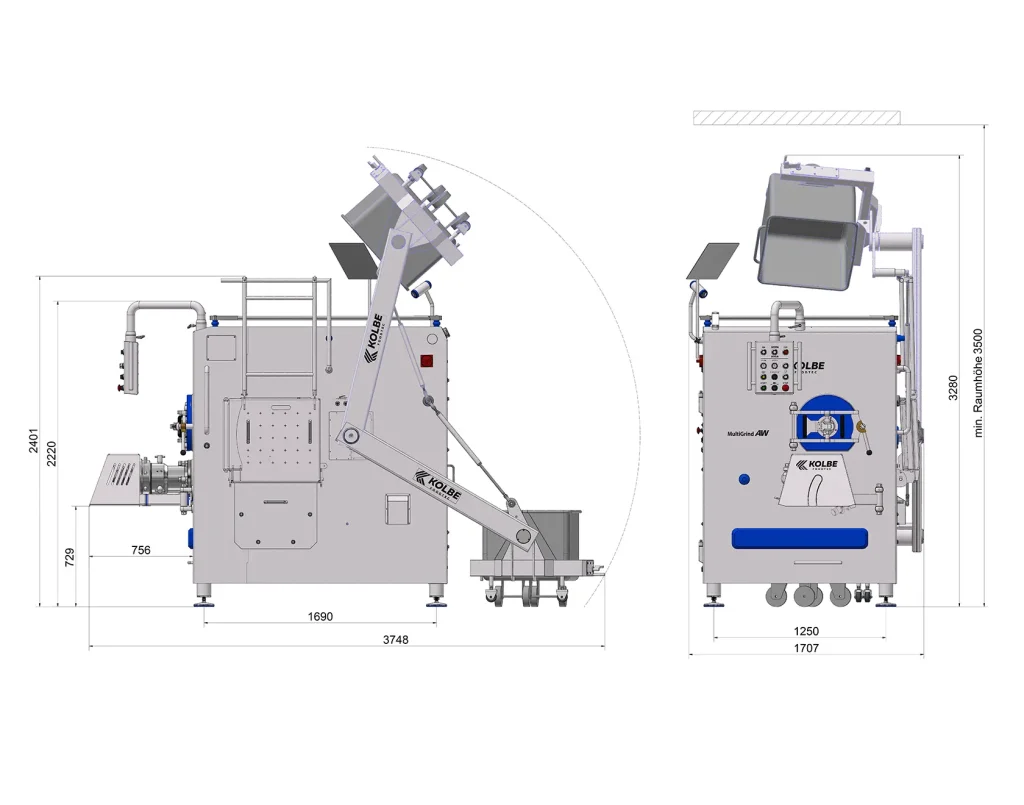

External dimensions (W x D x H)	1705 x 3664 x 3280 mm
Total hopper volume	~500 Ltr.


Cutting system	Unger U200
Perforated plate-Ø	200 mm
Total hopper volume	~500 Ltr.
Output (with perforated plate 3mm)	~2500-7000 kg/h
External dimensions (W x D x H)	1705 x 3664 x 3280 mm
Motor voltage (3Ph)	400 V
Motor main drive / Protection system IP55	55 kW
Motor feeding drive / Protection system IP55	7,5 kW
Nominal current at 400 V – Main drive	96 A
Nominal current at 400 V – Feeding drive	15,7
Conductor size	95 mm²
Fusing at 400 V (A lazy)	200 A
Input height	2100 mm
Discharge outlet height (with outlet protection cover)	715 mm
Noise level	69,7 db (A)
Weight (net.)	~3470 kg

Stainless steel machine / feeding hopper with safety frame / outlet protection cover / socket wrench SW35 / combi hook spanner / stainless lock nut, chassis & worm / swing-out housing / hydraulic worm ejection / feeding worm prefilling function / push-button-control / 4 height adjustable anti vibration metal-feet / cable for main connection / filling level monitoring
